Basic Info.
Model NO.
YTAT-101
Type
Material Testing Machine
Maxcapacity
N/a
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Controller
Weight
100-500Kg
Power Source
AC380V
Oil Cylinder Position
N/a
Inner Size
450*500*450mm
External Size
1180*1300*750mm
Air Change Rate
5 to 200 Times/Hour
Temp. Range
10 Degrees---300degrees
Humidity Range
20% Rh--98%Rh
Temp. Fluctuation
+/-0.5 Degree
Humidity Fluctuation
+/-0.5%Rh
Color
Ivory or Other
Interior Chamber Material
SUS#304 Stainless Steel Plate
Exterior Chamber Material
Stainless Steel Plate + Powder Coated
Transport Package
Well Packed in Strong Plywood Cases.
Specification
CE, SGS, TUV certified.
Trademark
Yuanyao
Origin
Dongguan, China(Mainland)
HS Code
9032100000
Production Capacity
100 Sets/Month
Product Description

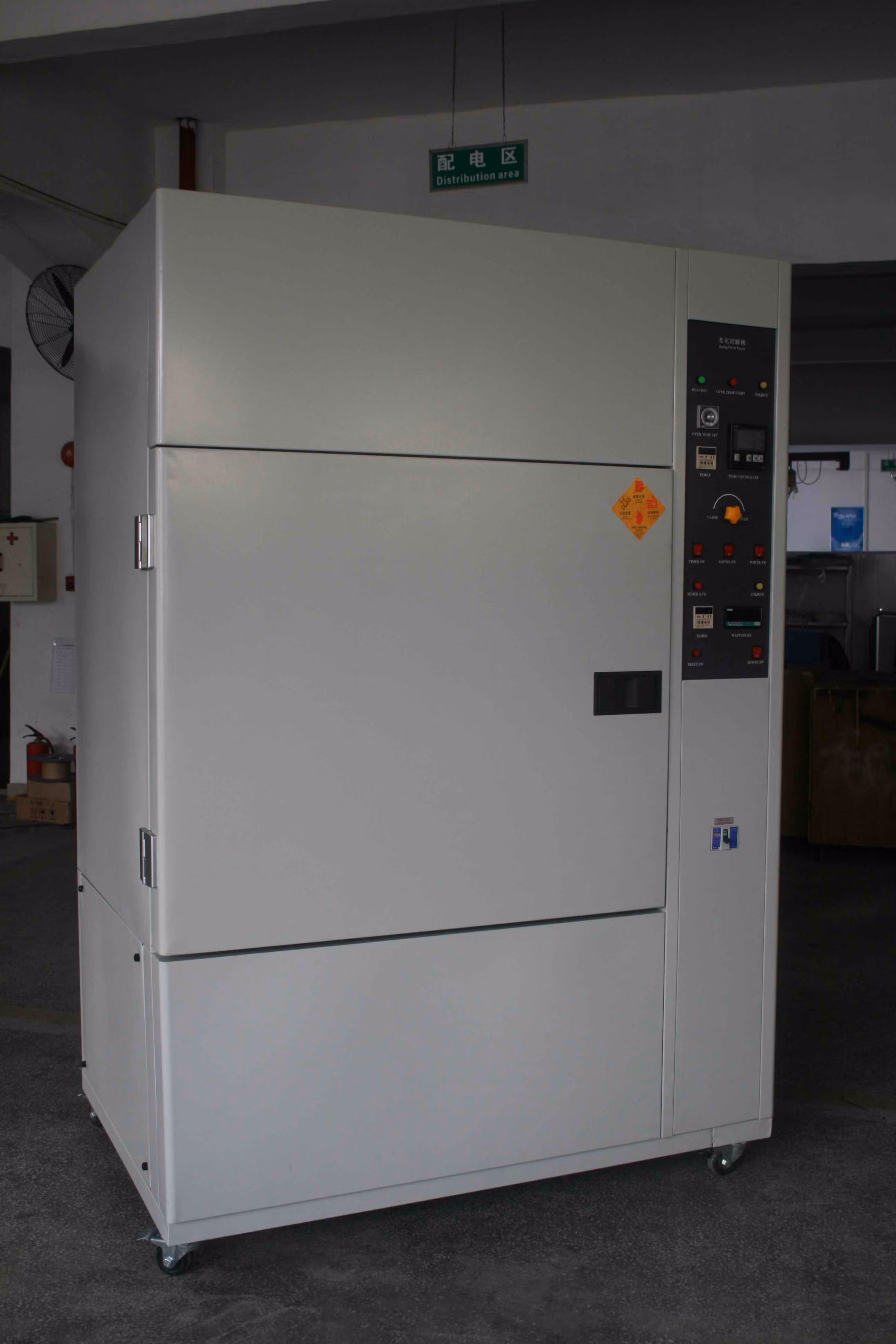

Air and Temperature Control Air ventilation aging oven
Introduction&Application
Air and Temperature Control Air ventilation aging oven simulates the environment of high temperature atmospheric pressure environment, which is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, treatment of mandatory ventilation, etc.
Features
1 Stainless steel SUS#304 made, easy setting operation.
2 Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.
3 Internal rotary free dismantling, suspension frame motor speed is 8-10 rpm.
4 Ventilation measurement function.
5 Optional accessories( Temp. Recorder, calibrated rack for 9 points calibration)
6 Best after sales service: One year free parts maintenance.
7 Meet international test standards.
8 Customization is available & welcomed.
Technical parameters: Please see the label.
Except Air and Temperature Control Air ventilation aging oven , Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
Introduction&Application
Air and Temperature Control Air ventilation aging oven simulates the environment of high temperature atmospheric pressure environment, which is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, treatment of mandatory ventilation, etc.
Features
1 Stainless steel SUS#304 made, easy setting operation.
2 Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.
3 Internal rotary free dismantling, suspension frame motor speed is 8-10 rpm.
4 Ventilation measurement function.
5 Optional accessories( Temp. Recorder, calibrated rack for 9 points calibration)
6 Best after sales service: One year free parts maintenance.
7 Meet international test standards.
8 Customization is available & welcomed.
Technical parameters: Please see the label.
| Specification | |||
| 1Model | YTAT-101 | YTAT-216 | |
| Internal Dim.W×H×D(mm) | 450×500×450 | 600×600×600 | |
| External Dim.W×H×D(mm) | 1180×1350×750 | 1330×1450×900 | |
| Temp Range | Room temp +10ºC--300ºC | ||
| Features | Temp Constancy | ±0.5ºC | |
| Temp Uniformity | ±2ºC -- ±3ºC | ||
| lndication Resolution | ±0.1ºC | ||
| Heat-up Time(min) | 30 | 40 | |
| Material | Exterior | Stainless steel plate + Powder Coated | |
| Interior | SUS # 304 stainless steel piate | ||
| Insulation | Fiberglass wool | ||
| Systems | Circulation | siroco fan | |
| Heating | Chrome steel strip wire heater | ||
| Control | PID electronic digital control+S.C.R | ||
| Other Components | Vacuum glass observation window lighting,environmental control indicator lights | ||
| Experiment separation shelves,rotation experiment pams,ventilation adjusment mechanism | |||
| Airch ang Rate | 5 -- 200 (3 --250)times/per hour | ||
| Sefety Devices | Overheating prevention circuit-breaket,control systen,breakdown indicator right | ||
| Power Source[K.W.] | AC 1Ψ 220V;60/50Hz | ||
| 7 | 10 | ||
| Comply with ASTM D2436, JIS K7212, DIN 50011, BS 2648, IEC-540. | |||
| Air Change Rate for Standards | |||
| Standards | Air Change Rate | ||
| JIS-K212, JIS-K6723 JIS-A5756, JIS-C3004 JIS-C3005, JIS-K6301 | up 1 time/hr | ||
| ASTM-D2436, ASTM-D573 ASTM-5374, ASTM-D5423-93 | 100-200 times/hr | ||
| UL-746B | 100-200 times/hr | ||
| UL-1581.62.444 | 5-250 times/hr | ||
| ISO/DIS 4577 | 1 time/hr | ||
| BS-6746 | 8-20 times/hr | ||
| BS-903 | 8-20 times/hr | ||
| IEC-540 | 8-19 times/hr | ||
