Basic Info.
Model NO.
XB-OTS-Z
Material
Imported PVC & PP
Certification
CE, ISO, ASTM
Application
School, Hospital, Lab
Type
Salt Spray Testing Machine
Inside Chamber Temp. Range
Rt--50degrees, +/-0.5 Degree
Salt Water Tank Temp. Range
Rt.-- 50degrees, +/-0.5degree
Air Saturated Barrel Temp. Range
Rt--63degrees, +/-0.5 Degree
Salt Spray Veicle
Air+Acid Based Liquid
Power
Electronic
Power Supply
220V / 380V, 50Hz / 60Hz
Usage
Salt Spray Corrosion Test
Standards
ASTM B117, GB/T2423.17
Air Pressure
86~ 106kpa
Spray Volume
1.0~2.0ml/80cm2/H
Transport Package
Strong Wood Case
Specification
200*120*60 mm
Trademark
OTS
Origin
China
HS Code
9031809090
Production Capacity
168 Set/Month
Product Description

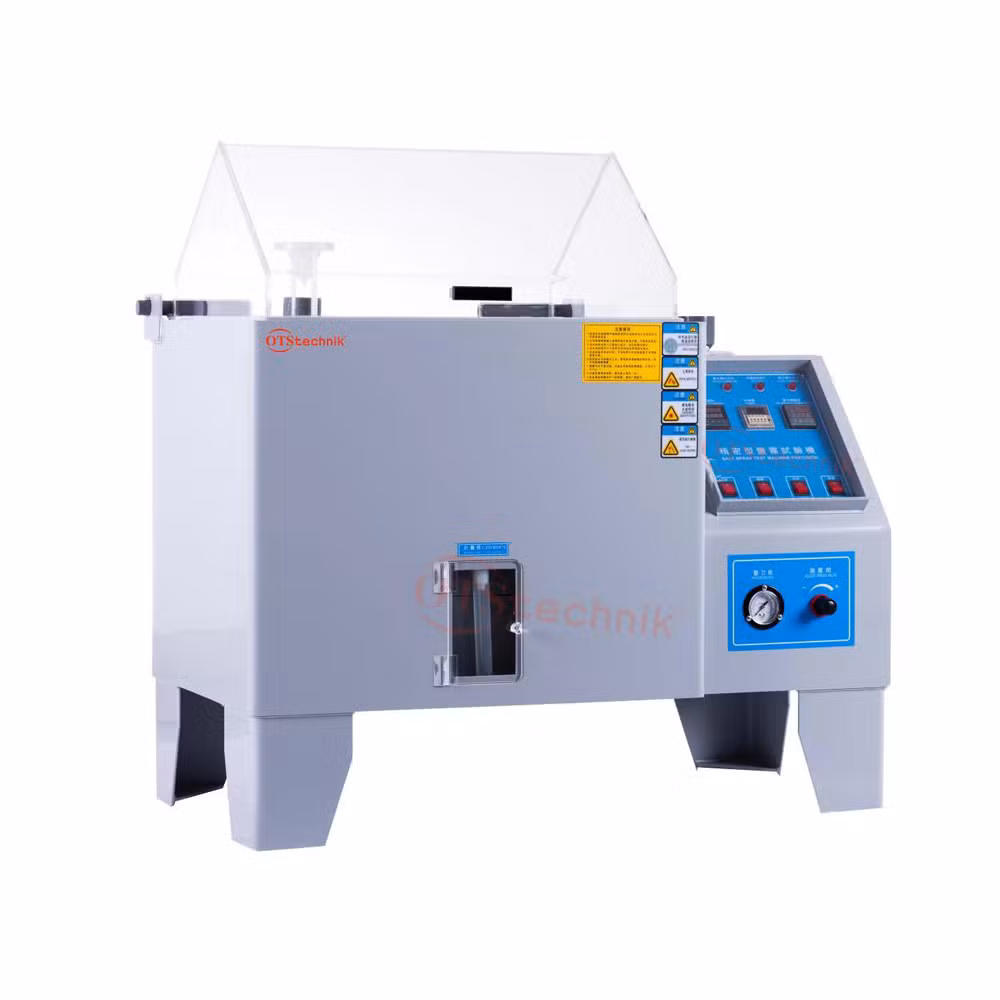

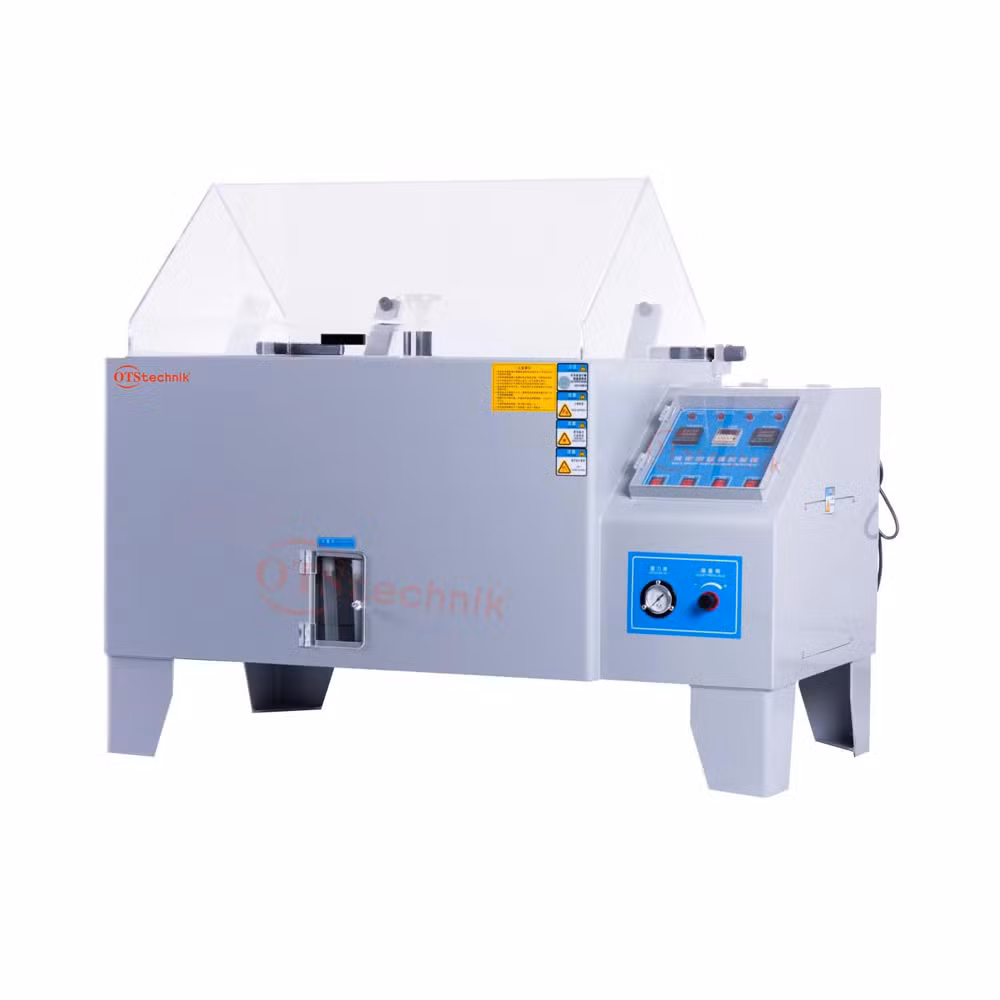

Fog Test Chamer Nozzle Test Chamber Salt Spray Test Machine
Product Introduction:
Corrosion Resistant Salt Spray Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specification
Application
Automotive industry
Electronics industry
Aviation and space industries
Material and substance
Standard
CUSTOMER DEFINED.Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VD
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ
Please tell me the test product,
Leave your email and informations,
Then Click the below "send"
I will give you the best service and surprice,try it?
Product Introduction:
Corrosion Resistant Salt Spray Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specification
Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 |
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method | ||||
| (CASS)50°C±1°C | |||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 480L | 800L | 1440L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 or 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
Application
Automotive industry
Electronics industry
Aviation and space industries
Material and substance
Standard
| ASTM B117 | DIN 50021 |
| DIN 9227 | EN 9227 |
| ISO 9227 | BS ISO 16539:2013 |
| BS 7479:1991 | ISO 9227:1990 |
| BS 5466-1:1977 | ISO 3768-1976 |
CUSTOMER DEFINED.Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VD
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ
| 1. How to choose the most suitable fitness equipment steel tensile testing machine? |
| Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification. |
| 2. What's the delivery term? |
| At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you. |
| 3. Do you accept customization service? |
| Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs. |
| 4. Can we visit your factory before order? |
| Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport. |
| 5. Do you have customers of our country before? |
| Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so on. |
| 6. How about your warranty? |
| Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service. |
| 7. How about the packing for machine, is it safely protected during transportation? |
| Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage. |
| 8. What is the order process? |
| Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service. |
| 9. How to install and use the product? |
| The product is shipped with an operating instructions and video of English version. |
