Product Description

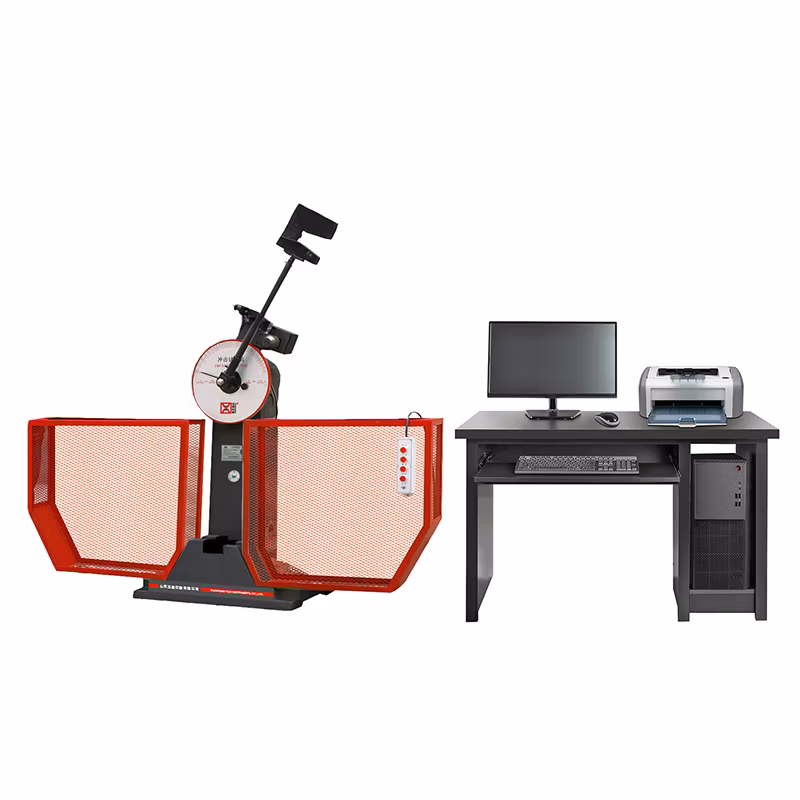

The series of pendulum impact tester are mainly used to measure the Charpy impact resistance of metal materials under dynamic load, so as to judge the quality of materials under dynamic load.
PIT semi-automatic impact testing machine
The equipment adopts semi-automatic control and dial pointer display. Automatic swing can be realized by using the residual energy of impact test.
Compact structure and simple operation.
PIT-D Digital display impact testing machine
The equipment adopts semi-automatic control. Automatic swing can be realized by using the residual energy of impact test.
Two display modes: LCD Digital display and dial pointer display.
ISO 148, EN10045, ASTM E23
Model | PIT-300B | PIT-500B | PIT-800B |
Impact energy | 300J/150J | 500J/250J | 800J/500J |
Release Angle | 150° | ||
Pendulum length | 750mm | 800mm | 850mm |
Impact velocity | 5.2m/s | 5.4m/s | 5.9m/s |
Sample support span | 40mm | ||
Hammer thickness | 16mm | ||
Hammer radius | R2-2.5mm | ||
Radius of curvature of supports | R1-1.5mm | ||
Sample size | 10mm*10mm*55mm | ||
Power supply | 380V 50HZ 5A | ||
Weight | 450kg | 650kg | 2300kg |
1.High and new technology enterprises
2.ISO 9001-2015 Quality management system certification
3.Registered Mark certificate
4.Member of Shandong Association of Special Equipment
5.Member of China Friction & Sealing Material Association
6.Member of China Elevator Association
7.Radiation safety permit
List of Patent letters
- Brake pad test equipment patents
- A chase friction testing machine
- A Krauss testing machine for the friction performance of brake lining friction materials
- A high-temperature shear test device for brake lining
- A brake pad sampling machine
- Torque wrench calibration equipment
- A torque wrench calibration device
- A multi-station torque wrench calibration device
- A kind of two-end drive type torque wrench calibration device
- A reference torque wrench
- A reference torque wrench( small range)
- A reference torque wrench (Big range)
- Elevator & Escalator testing equipment
- A multifunctional tester for escalator handrails
- A roller parallelism calibrator
- A laser alignment instrument for belt pulleys
- A door pendulum shock testing machine
- A elevator door closing force tester
- Testing machines
- A pendulum impact testing machine
- A static load testing machine for concrete sleepers
- A steel bar bending testing machine
- A fixture and universal testing machine for tensile testing of fiber bundle materials
The above is only a partial list. We have 48 patents and the number of patents is still increasing.
List of Computer Software Copyright Registration Certificate
- Brake pad test equipment :
- Brake Lining Chase Friction Performance test and Control System V1.0
- Servo Load Measurement and Control System V1.0 for Krauss friction testing machine
- Measurement and control system for shear strength testing machine
- Measurement and control system V1.0 of Brake lining compress strain & thermal expansion testing machine
- Torque wrench calibration equipment
- A measurement and control system V1.0 for Torque wrench calibrator
- Elevator & Escalator testing equipment
- Crane comprehensive performance testing and analysis system V1.0
- Comprehensive Performance Test and Analysis System V1.0 for Escalators and Moving Walkways
- Comprehensive Evaluation System V1.0 for Lift Safety Performance
- Testing machines
- Fatigue testing machine measurement and control system V1.0
- Impact testing machine measurement and control system V1.0
- Universal testing machine measurement and control system V1.0
- Torsion testing machine measurement and control system V1.0
The above is only a partial list. We have 24 Software Copyright Certificates and the number of patents is still increasing.
1.Are you a manufacturer or trading company?
We are manufacturer as well as trading company.
As manufacturer, we have our own R&D team,48 pattents,24 Software copyright certificates, registered mark and ISO 9001 quality management system certification.
As a trading company, we deal in testing instruments of domestic and international well-known brand as their agent. We can help you apply
2. What is your payment terms?
A: T/T ,L/C at sight,Credit card and so on. Other payment is negotiable
3. What about the lead time?
A: Portable testers and tools: 4-10 days.
Regular testing machines: 10-20 days.
Customized testing machines: 15-40 working days.
4. What about the warranty?
A: One year.
5. What services do you provide?
A: Pre-sales:
We provide solutions and quotation according to customer's demand.
We can customize for customer according their demand and standards.
We accept the sample test from customers.
After-sales:
For portable testing tools, we instruct users to operate by video, telephone and on-line video call.
For testing machines, we send engineers to user's site to install machines and provide training service.
