Basic Info.
Model NO.
YT-48A
Power Source
AC220V
Application Range
Cardboard, Plastic Board, Hollow Board, Lea
Power Supply
AC (100~240)V
Application Function
Measure Puncture Strength
Transport Package
Wooden Box
Trademark
YANTE
Origin
Hangzhou China
HS Code
9024800000
Product Description

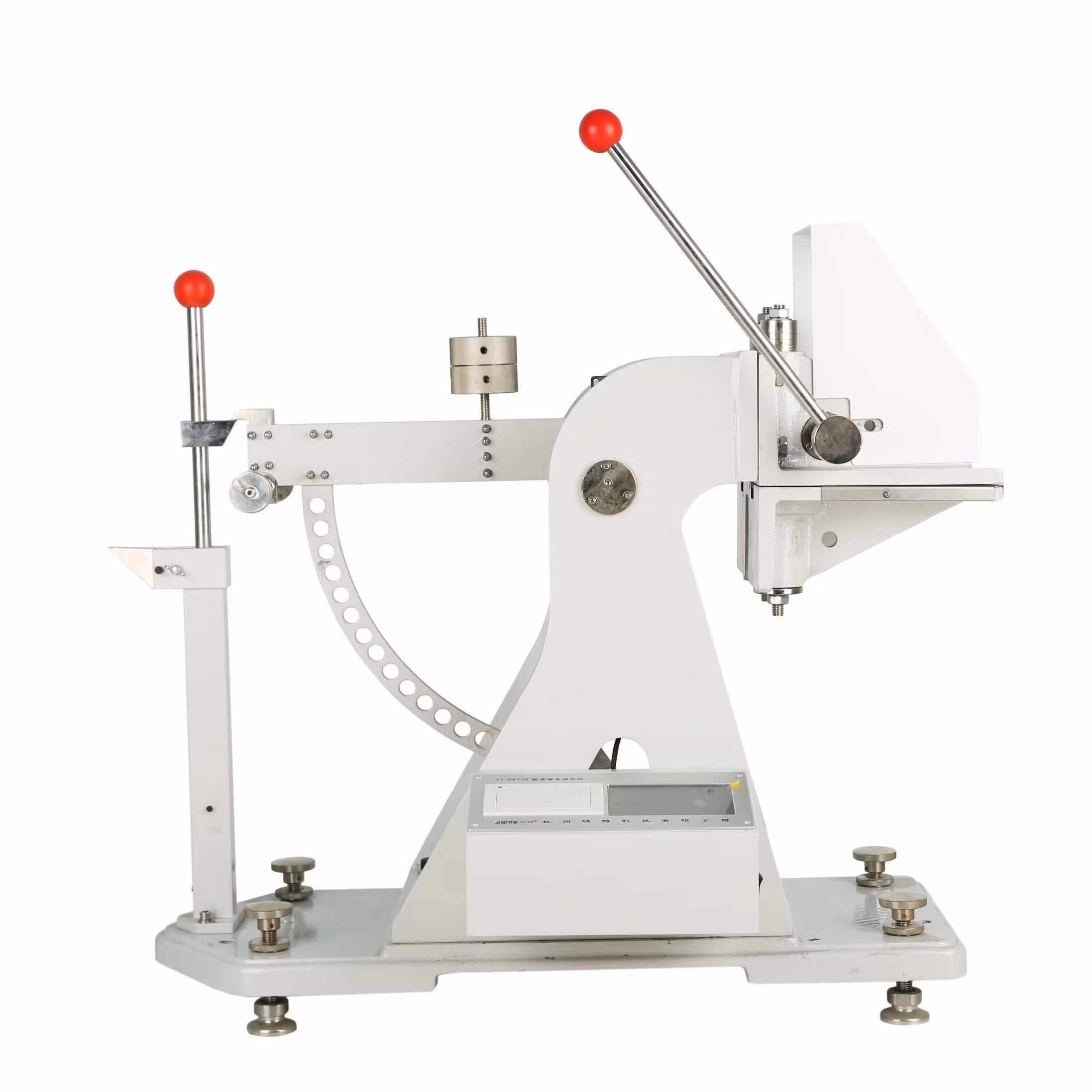

Puncture Resistance Tester
YT-PRT48 Puncture Resistance tester is a special test instrument for corrugated board anti-puncture performance (puncture strength). Measure the puncture strength (Joules) of corrugated cardboard samples, understand the puncture resistance of corrugated cardboard boxes, simulate the damage to the boxes when the boxes are subjected to violent impact by other boxes or conical objects during handling and transportation; It is a common instrument for enterprises and departments such as cardboard, carton production, scientific research and commodity inspection.
YT-PRT48 Puncture Resistance tester is a special test instrument for corrugated board anti-puncture performance (puncture strength). Measure the puncture strength (Joules) of corrugated cardboard samples, understand the puncture resistance of corrugated cardboard boxes, simulate the damage to the boxes when the boxes are subjected to violent impact by other boxes or conical objects during handling and transportation; It is a common instrument for enterprises and departments such as cardboard, carton production, scientific research and commodity inspection.
Model
YT-PRT48Application Range
Cardboard,cardboard,plastic board,hollow board,leather,film,fire board,cement bag,etc.Application Function
Measure puncture strengthProduct Features
- Robust steel structure to avoid energy loss caused by vibration during testing
- Separation mechanism with protection system, safety shield; self-tightening clamp with adjustable pressure
- 5-inch color touch screen, Chinese and English display, touch buttons, making operation easy to understand
- Automatic measurement, statistics, print test results, and data retention
- Thermal printer core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.
- The instrument is equipped with a standard RS232 interface, which can be used with PC software for communication (optional)
Key Technical Parameters
- Power supply AC (100~240)V 50/60Hz 120W
- Working environment (10~35)ºC,Humidity≤85%
- Measurement Range
| Test Stall | Measurement Range | Indication Error |
| Rule A | (0~6)J | ±0.05J |
| Rule B | (0~12)J | ±0.10J |
| Rule C | (0~24)J | ±0.20J |
| Rule D | (0~48)J | ±0.50J |
| Note: Indication Error is only guaranteed within the range of 20% -80% of the upper limit of each stall. | ||
- Rule A not place thallium and knurled nut
- Rule B place the lightest thallium and knurled nut based on stall A
- Rule C place intermediate thallium based on stall B
- Rule D place the heaviest thallium based on stall C
Optional accessories(Purchase separately)
RS232 interface and 1 set of computer softwareStandards
- GB/T 2679.7 ISO 3036 TAPPI T803
