Basic Info.
Model NO.
GA-850
Type
Xenon Aging Test
Weight
88kg
Power Source
AC220V
Name
Desktop Xenon Lamp Test Chamber
Usage
Aging Test
Transport Package
Plywood Cases
Specification
90*60*60cm
Trademark
GONOAVA
Origin
Changsha
HS Code
9024800000
Production Capacity
200
Product Description

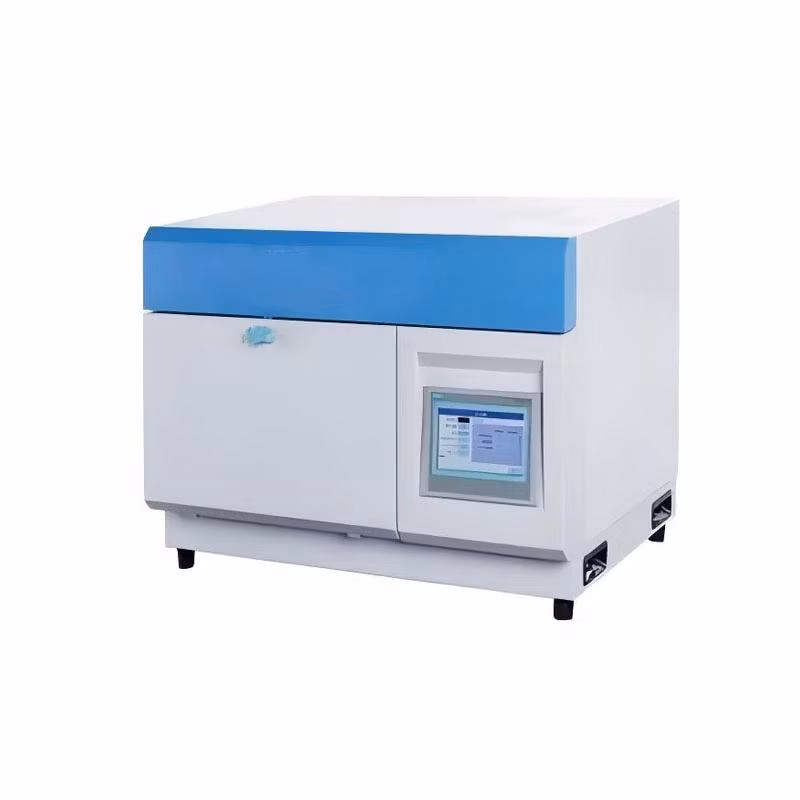

GA-850 Desktop Xenon Lamp Test Chamber Xenon Arc Test Machine Xenon Aging Tester Chamber Accelerated Testing Chamber
1.Application
GA-850 Xenon lamp test chamber uses a xenon arc lamp that can simulate the full sunlight spectrum to reproduce destructive light waves in different environments, and can provide corresponding environmental simulation and accelerated testing for scientific research, product development and quality control. 2. Product Features
1. Humanized Design
The xenon light source that meets international standards simulates the full spectrum of sunlight more realistically, and the stable light source ensures the comparability and reproducibility of the test data;
The unique design of the mirror reflection system makes the sample exposure area large enough and uniform, and can enhance the light irradiance and shorten the sample exposure time;
The track-type slide-out sample tray is convenient for the placement of a variety of samples, and can place special samples such as bottles, test tubes and culture dishes;
The xenon lamp tube can be interchanged with the original imported xenon lamp tube from the United States, and the service life of the lamp tube is up to 1500 hours, with low operating cost and high cost performance;
The imported PLC touch screen controller (SIEMENS) is used, with a simple interface and easy operation.
2. Touch screen controller
9.7-inch touch screen controller (SIEMENS), all kinds of data are displayed on one screen, menu-based operation interface, simple and easy to understand, easy to observe and operate;
Irradiance, blackboard temperature, rain cycle, etc. can be intuitively set and displayed;
The touch screen can display all control parameters and automatically diagnose fault information; it has a lamp attenuation prompt to ensure uniform, stable and reliable irradiance;
Industry standards are built into the controller, which can be selected by users with different industry needs, and can also be customized according to user requirements (10 segments can be preset);
It has data processing function to provide strong guarantee for test process data and playback.
3.Automatic irradiance monitoring and control system
Break through the defect that the irradiance of existing domestic aging test chambers cannot be monitored and controlled, and reduce the irradiance attenuation and test errors caused by lamp aging.
4.Professional irradiance calibration
Equipped with a self-developed irradiance calibrator, it can be calibrated simply and quickly. It can be traced back to national or international metrology institutions to ensure the accuracy and stability of irradiance.
5. Standards
Coatings industry: GB/T 1865-2009; GB/T 1189-91; ISO 11341
Auto parts industry: SAE J1885; SAE J2412; SAE J2527
Rubber and plastics industry: ISO 4892-2; ASTM D2565; GB/T 16422.2-1999
Textile industry: GB/T 8427; AATCC 16E; AATCC 169; ISO 105B-06; ISO 105B-02
Material industry: ASTM G155; ASTM D6551
GA-850 Desktop Xenon Lamp Test Chamber Xenon Arc Test Machine Xenon Aging Tester Chamber Accelerated Testing Chamber
| Bending Angle | 0° ~ 90° (adjustable) |
| Speed | (0 ~ 150) cpm |
| Number of Test Pieces | 4 pairs of shoes |
| Counter | 6-digit electronic LCD display |
| Dimensions | (100×78×70) cm |
| Weight | 240kg |
| Power Supply | AC220V 50HZ |
