Basic Info.
Model NO.
CJDW-450
Max Diameter of Workpiece
16-1200mm
Mass Scope of Workpiece
<900kg
Type
Pipe Hydrostatic Testing
Maxcapacity
10MPa
Accuracy Grade
1
Load Way
Electronic Load
Loading Method
Static Load
Display
Digital
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Oil Cylinder Position
by Others
Impact Height
0-2000mm,±2mm
Size
L750mm×w550mm×h3500 mm
Name
Plastic Pipe Drop Hammer Impact Testing Machine
Transport Package
Plywood Case
Specification
L750mm× W550mm× H3500 mm
Trademark
Chenji or OEM ODM
Origin
Jinan or Others
Production Capacity
500set Per Month
Packaging & Delivery
Package Size
75.00cm * 76.00cm * 3980.00cm
Package Gross Weight
300.000kg
Product Description

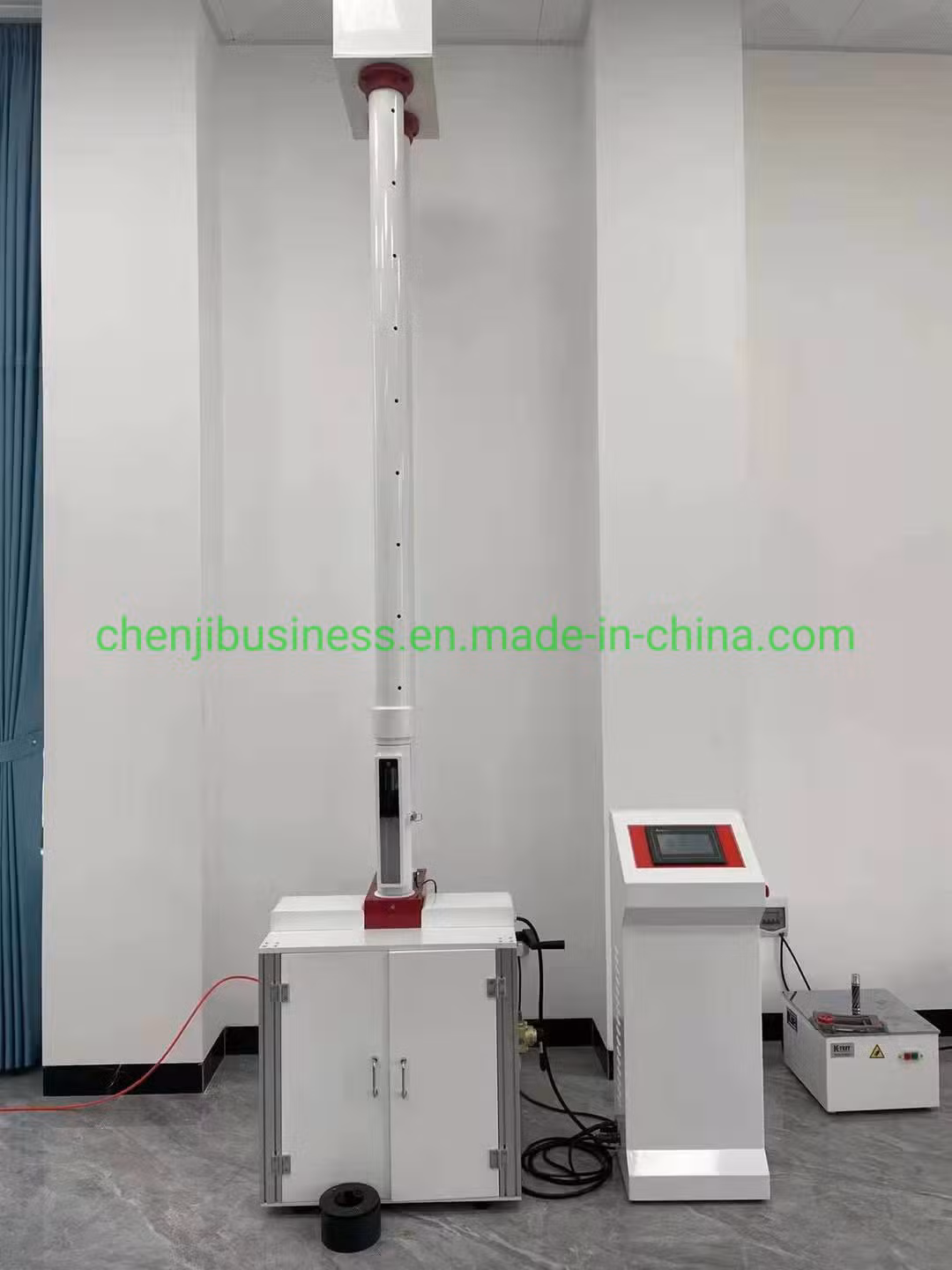

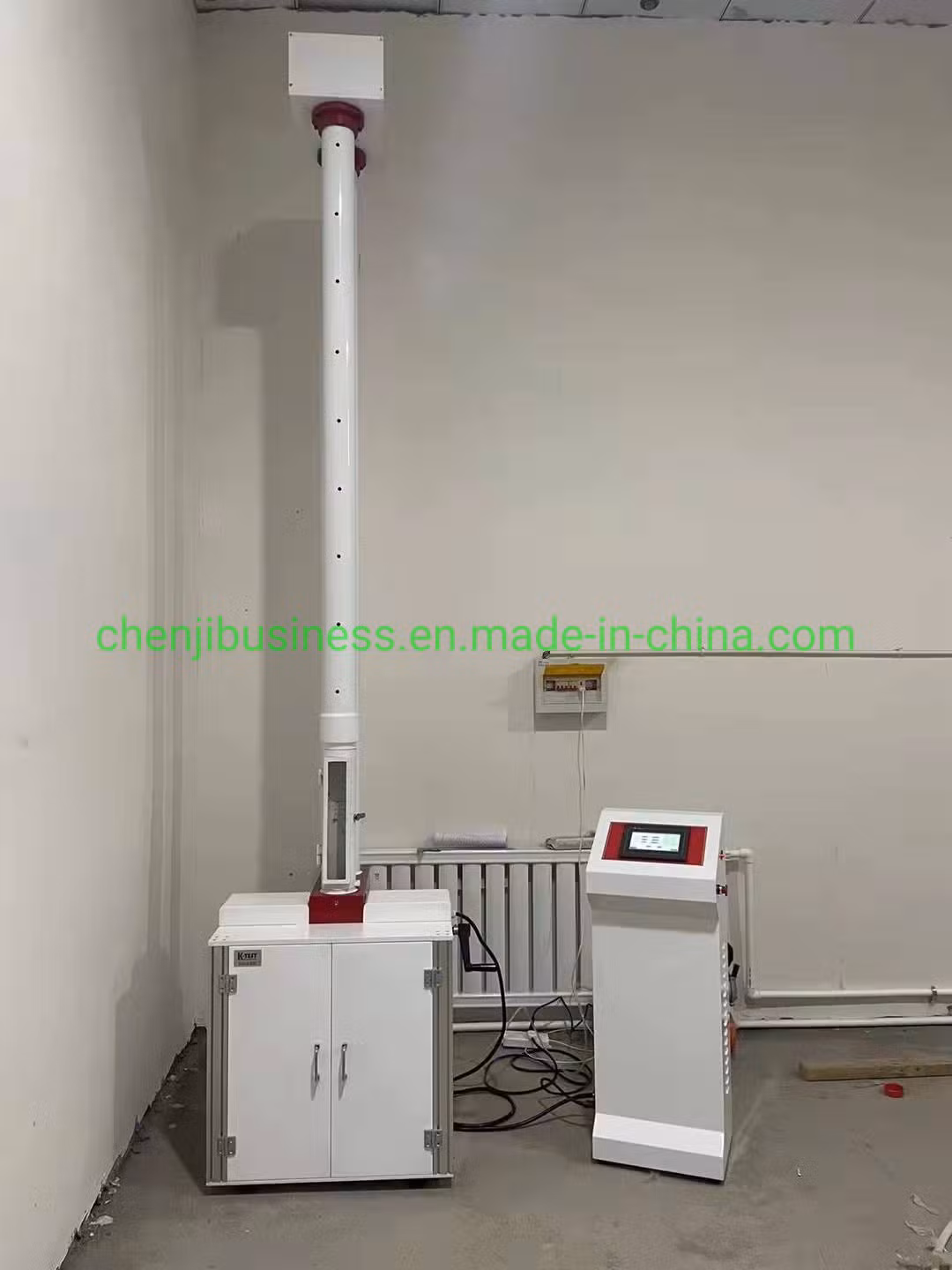

High Precision Plastic Pipe Drop Weight Impact Tester Supplier Drop Hammer Test Machine
1. Easy to operate
2. Impact height: 0-2000mm
3. High quality
4. Good after service
5. Falling hammer mass: 0.25-15kg
1. Functions:
It is used for the plastic pipe, board and goods to do the impact test , to praise the materials resistant outside force impact performance. The machine controlling parts adopt the numerical control technique. It can number preset and display the impact height, automatic return to zero, rising hammer, dropping hammer, impact and can effectively prevent the twice impacting. It adopts the distyle structure, the structure is compact, energy lost is small, and testing speed is quick.
2. standards-compliant:
ISO3127 BS EN1411
BS EN744
3. Technological indicators:
Impact height: 0-2000mm,±2mm
Overall dimensions: L750mm×W550mm×H3500 mm
Energy losses: 0.25%
Masses of strikers: 0.25-15kg, permissible tolerance shall be ±0.5%
Nose and masses of striker: depending on customers standards
Rising speed: 12m/min
Anti-rebound catching rate: 100%
Test specimen: 10mm-400mm
1. Easy to operate
2. Impact height: 0-2000mm
3. High quality
4. Good after service
5. Falling hammer mass: 0.25-15kg
1. Functions:
It is used for the plastic pipe, board and goods to do the impact test , to praise the materials resistant outside force impact performance. The machine controlling parts adopt the numerical control technique. It can number preset and display the impact height, automatic return to zero, rising hammer, dropping hammer, impact and can effectively prevent the twice impacting. It adopts the distyle structure, the structure is compact, energy lost is small, and testing speed is quick.
2. standards-compliant:
ISO3127 BS EN1411
BS EN744
3. Technological indicators:
Impact height: 0-2000mm,±2mm
Overall dimensions: L750mm×W550mm×H3500 mm
Energy losses: 0.25%
Masses of strikers: 0.25-15kg, permissible tolerance shall be ±0.5%
Nose and masses of striker: depending on customers standards
Rising speed: 12m/min
Anti-rebound catching rate: 100%
Test specimen: 10mm-400mm
This tester is used to determine the impact test of plastic pipe, sheet metal and products in order to determine Anti-impacts the properties of these materials.
It adapts digital control technology for control part, which can ensure that figure setup, adjusting zero, raising hammer and dropping hammer automatically, and can be effective in preventing secondary impacts.
| Impact height | 2m (or custom made) |
| Working temperature | 10~35ºC |
| Hammer mass | 0.250~10.00Kg,0.125Kg/per increase |
| Specimen diameter | 10~400 mm, 10~630 mm (outer diameter) |
| Hammer radius | d25, d90 |
| The sample size | ≤280*100*40mm(L*W*H) |
| Height location error | ±5g |
| Control cabinet | 2mm, 100% prevent from second impact |
| Power supply | AC 380V±10% 5A;2KW |
