Basic Info.
Model NO.
MVT
Certification
CE
Warranty
1 Year
City
Dongguan, Guangdong
Uses
Temperature Pressure Testing Machine
Purpose
Temperature Pressure Testing Chamber
Model
Mvt
Volumn of Inner Box
100-1000L
Transport Package
Wooden Box
Specification
50*50*40CM
Trademark
MENTEK
Origin
China
HS Code
8419899090
Production Capacity
1000PCS/1year
Product Description

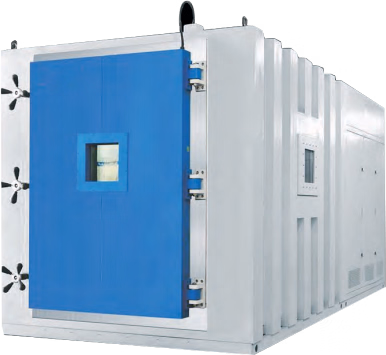

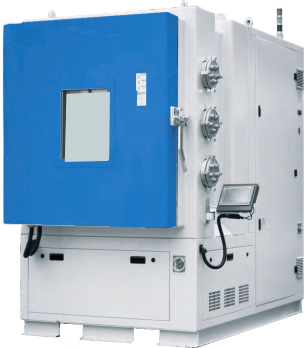

Industrial High Low Temperature Humidity Low Pressure Control Testing Equipment Chamber
Note:
1. We provide custom non-standard sizes, meticulously designed to meet your exact specifications.
2. Innovative heating and cooling rates, along with load options, can be finely tuned to match your precise requirements.
The equipment strictly complies with the following testing standards:
Our cutting-edge equipment is scrupulously aligned with an extensive suite of testing standards: National Standard/T2423.1-2008 Test A for Low Temperature, National Standard/T4243.2-2008 Test B for High Temperature (Partial), National Standard/T2433.3-2006 Test Cab for Constant Humidity and Heat, Chinese National Standard/T2423.4-2008 for Change and Damp Heat, as well as the China National Standard/T2423.34-2012 Test Z/AnnoDominique for Temperature and Humidity Combination. Experience unrivaled reliability with tests performed across the equipment's full performance spectrum, ensuring your requirements are met with precision and confidence.
Structure of the Testing Chamber
Engineered to perfection, the testing chamber's exterior is crafted from rugged galvanized color steel plate, ensuring formidable durability and longevity.
The interior is a testament to exquisite craftsmanship, featuring SUS304 stainless steel plates complete with adaptable hanging hole strips for optimal adjustment. With robust thermal insulation, comprising a minimum of 10 cm rigid polyurethane foam and glass wool, it ensures superior temperature control. The front door junctions, both inner and outer, are framed with premium electric wood chicken glass fiber board, providing outstanding low-temperature insulation. To maximize sealing, the door is equipped with a dual-channel series of silicone foam strips, ensuring comprehensive temperature resistance and a secure seal.
Experimental Space Air Circulation:
Our state-of-the-art air supply system employs multi-blade aluminum turbines that withstand both high and low temperatures, precisely driven by motors to ensure accurate air distribution to the upper louvers. The airflow is efficiently recirculated from the base, maintaining a temperature variance of less than 2ºC over the extensive range of -70~100ºC. Validated internationally at 10 points, this system promises unmatched precision and consistency.
Controller Operating System
At the core of our system lies an advanced, low-power (8W) temperature and humidity control device, guaranteeing exceptional accuracy of ±3ºC, ensuring stable, reliable, and precise testing conditions consistently.
1. High Resolution Screen:
Delight in exceptional clarity with a 7-inch TET true color LCD resistive touch screen, featuring a stunning resolution of 800 * 480. Every detail is vividly displayed and easily accessible, facilitating effortless operation.
2. High Program Capacity:
Boasting extensive memory supporting up to 1000 programs/1000 segments, with 999 total loops and 999 partial loops, our system is crafted to manage comprehensive testing operations. With 10 sets of program linking capabilities and real-time temperature curve displays, users can seamlessly query data, enhancing workflow and productivity with remarkable efficiency.
3. High Data Storage Capacity:
Efficiently manage and transfer historical data for up to 300 days. Whether uploading directly via hard disk or network cable to your computer or integrating into the controller, experience seamless data continuity and effortless access, ensuring you are always ahead with dependable data management.
4. Simple Connectivity:
Immerse yourself in an era of unparalleled connectivity with our LAN standard Ethernet communication. Experience seamless integration as a single software effortlessly connects up to 16 devices, perfectly merging with your regional networks. Embrace sophisticated remote program control capabilities, offering you real-time monitoring, plus historical curve playback, all crafted to boost productivity and operational efficiency. This cutting-edge communication system keeps you ahead in the rapidly changing digital landscape, taking your technological expertise to extraordinary new levels.
Heating and Humidification System
Discover the pinnacle of heating technology with our system's high-efficiency, bare wire nickel chromium alloy electric heating tubes. These engineering wonders offer minimal thermal inertia and virtually no heating overshoot, ensuring exceptional precision and consistency. With powerful power control mechanisms in place, our system creates optimal thermal conditions, the epitome of superior heating performance, setting new standards of reliability and excellence in industrial applications.
1. Humidifier:
Experience unparalleled uniformity in humidification with our advanced humidification cylinder, leveraging the efficient boiler method. For those who demand rapidity and precision, surface humidification through a water plate delivers unmatched performance and control accuracy. Effortlessly rid your testing chamber of impurities like scale. Designed for low humidity, this exceptional method ensures ease of cleaning. Our humidification tube's seamless stainless steel shell provides insulation resistance beyond 50M Ω, paired with an anti-dry burning controller for enhanced safety and assurance.
2. Optimize Water Consumption and Enhance Energy Efficiency:
Transform your testing environment with our innovative front-mounted 25L large-capacity water tank, featuring quick connectivity for seamless water and electricity integration. This state-of-the-art design allows for easy disassembly and cleaning. Achieve precise dehumidification across three distinct humidity zones. Our advanced system dramatically reduces water consumption while adhering to national standards for high temperature and humidity conditions like 85 º C and 85% RH. Benefit from our cutting-edge point cooling and dehumidification system, ensuring significant water savings, all within a closed design that maximizes efficiency.
Invest in equipment engineered to excel under extreme testing conditions, delivering not only durability but also unparalleled performance and reliability. This meticulous design ensures resilience and top-tier performance, providing you with extraordinary assurance and the ultimate in testing excellence.
1. Choose Your Circulating Air Mode: Courtyard Air Supply or Variable Speed Motor
For products requiring specific wind speed conditions, our solution embodies tailored superiority, ensuring optimal performance to meet your precise specifications with finesse. Experience adaptability and precision, catering to your unique requirements, delivering exemplary results consistently.
2. Opt for RO Reverse Osmosis Water Supply System
When purity is of utmost importance, our cutting-edge automatic water production system is your ideal choice. It consistently provides pure water, saving you time while ensuring exceptional outcomes that meet your stringent standards. Rely on purity and dependability for unmatched performance and peace of mind.
3. Advanced Polymer Film/Rotor Dehumidification System
For critical long-term low-temperature and low-humidity testing, our cellular chemical dehumidification system is the ultimate solution. It offers a wide humidity range, capable of specifications as low as 10 º C/10% RH or even lower, providing unmatched versatility for various testing needs, guaranteeing your operational success.
4. LN.Two/ .LCO.2
Our premier products encompass a comprehensive range of specifications sourced from Europe and the United States, ensuring superior performance and unwavering reliability. They stand as the gold standard in performance and durability, offering you the competitive edge with international excellence. LN.Two/ .LCO.2 Harness the advanced capabilities of solenoid valves and sophisticated control systems, crafted specifically for your accelerated testing needs. They enable rapid temperature reduction and precise control, elevating your testing procedures to unprecedented levels of precision and efficiency, ensuring your operational superiority.
5. Ultrasonic Cooling and Humidification System
Meet the rigorous demands of dynamic testing under extreme conditions, even in environments with elevated temperature and humidity. Our ultrasonic cooling and humidification system is exquisitely engineered to fulfill these challenging requirements, becoming an essential auxiliary device for your operations. Enhance your testing capabilities with unparalleled precision, ensuring your processes are both effective and efficient.
6. Add a Glass Inner Door with Manual Operation Access
Enhance the efficiency and ease of your testing procedures with our sophisticated glass inner door, featuring manual operation functionality (∧ 125Mm * Ea.). This thoughtfully integrated upgrade significantly minimizes environmental disturbance during chamber access, ensuring that the pristine testing conditions are impeccably maintained within the chamber, safeguarding the integrity of your experiments.
7. Real-Time Test Data Acquisition Recorder
Elevate your testing capabilities with our cutting-edge Real-Time Test Data Acquisition Recorder! Effortlessly conduct comprehensive analyses by capturing precise temperature data simultaneously from both the testing environment and the test object. Invest in this premier tape recorder, meticulously aligned with industry standards, providing the ultimate and most reliable solution for your demanding data recording needs. Protect the accuracy and integrity of your results with this indispensable tool for any serious testing operation.
8. Advanced Computer Connection Operation Recording Software
Experience unmatched monitoring excellence with our Advanced Computer Connection Operation Recording Software, meticulously designed for Mattel's environmental measuring machine kitchen. This robust software solution enables seamless, simultaneous monitoring of multiple machines, ensuring efficient and immediate access to critical data at your fingertips. Its state-of-the-art electronic features offer unparalleled user-friendliness and operational efficiency, transforming your workflow into a model of streamlined productivity. Embrace technological superiority and simplify every aspect of your work.
Presenting the pinnacle of precision in temperature testing: Behold the High Performance Humid Hot Testing Machine by Guangdong MENTEK Testing Equipment Co.,Ltd. This exceptional device is meticulously crafted to conduct exhaustive high and low temperature analyses across a diverse array of electrical products, components, and materials. Whether you are engaged in environmental simulation reliability tests-be it constant, gradient, mutation, or wet heat assessments-MENTEK's matchless test chambers are engineered with unrivaled accuracy to not only comply with, but to exceed the prestigious Chinese national standards/T10586-2006 and T10592-2008. Depend on a machine that redefines industry standards, providing unparalleled performance, assurance, and tranquility!
| Model | MVT-100 | MVT-500 | MVT-1000 | ||
| Temperature/pressure range | Temperature: 20ºC/40ºC/70ºC~+160ºC Air pressure:~05KPa | ||||
| Temperature control performance | Temperature fluctuation: <±0.5ºC(ordinaryt pressure) Temperature deviation:<±2.0ºC(ordinaryt pressure) Temperature uniformity:±2.0ºC(ordinaryt pressure) | ||||
| Performance parameter | Pressure deviation | ≤±2KPa(≥40KPa);≤±5%(2~40KPa);≤i01KPa(≤2KPa) | |||
| Heating and cooling rate | The agreed temperature range and rate of temperature rise and fall can be adjusted from 07 to 1 ºC, or according to the agreement (normal pressure) | ||||
| Voltage reduction time | Reduce atmospheric pressure to 0.5KPa ≤ 30min (when dry inside the box) | ||||
| Boost recovery rate | ≤10KPa/min | ||||
Structure | Pressure bearing method | Internal and external pressure can be delivered, using high-quality 12mm thick manganese steel alloy plate as the external pressure box body. The overall pressure strength design capacity is greater than 10t/square, and it is resistant to high and low temperatures and not easily oxidized | |||
| Material of inner and outer boxes | Outer wall material: double-sided galvanized steel plate, surface spray treated, inner wall reinforced to enhance the load-bearing support of the outer box Inner wall material: stainless steel plate SUS304 | ||||
| Thermal insulation material | The filling material is a vacuum specific composite pressure insulation material with strong pressure bearing capacity and high pressure resistance, which will not break | ||||
| Cooling system | Cooling method | Single stage mechanical refrigeration/cascade two-stage compressor refrigeration method | |||
| Refrigerator | French Taikang/German Bizelle imported compressors | ||||
| Control system | Controller | Original Japanese imported 7-inch TFT touch screen controller | |||
| Communication interface | USB . RS232/RS485etc | ||||
| Heater | Nickel chromium alloy electric wire heater | ||||
Other configurations | Observation window | 250mm High load vacuum glass | |||
| Vacuum system | German Ley-bold direct air-cooled single-stage oil sealed rotary vane vacuum pump | ||||
| Temperature sensor | Pt100 | ||||
| Pressure sensor | Swiss HUB0 sensor | ||||
Inner size | width(CM) | 50 | 80 | 100 | |
| height(CM) | 50 | 80 | 100 | ||
| depth(CM) | 40 | 80 | 100 | ||
| Effective volume | 100L | 512L | 1000L | ||
| Power | AC380V 50Hz Three phase four wire system+grounding wire | ||||
| Standard configuration | 1 copy of product manual, 1 copy of factory inspection report, 1 copy of certificate of conformity and quality assurance certificate, 2 test brackets, and testing interfaces as agreed | ||||
| Meet the testing standards | GB/T2423series .GB/T5170series .GJBl50Aseries .GJB360A/B .GB/T10589 . GB/T11158 .GB/T11159 | ||||
