Product Description

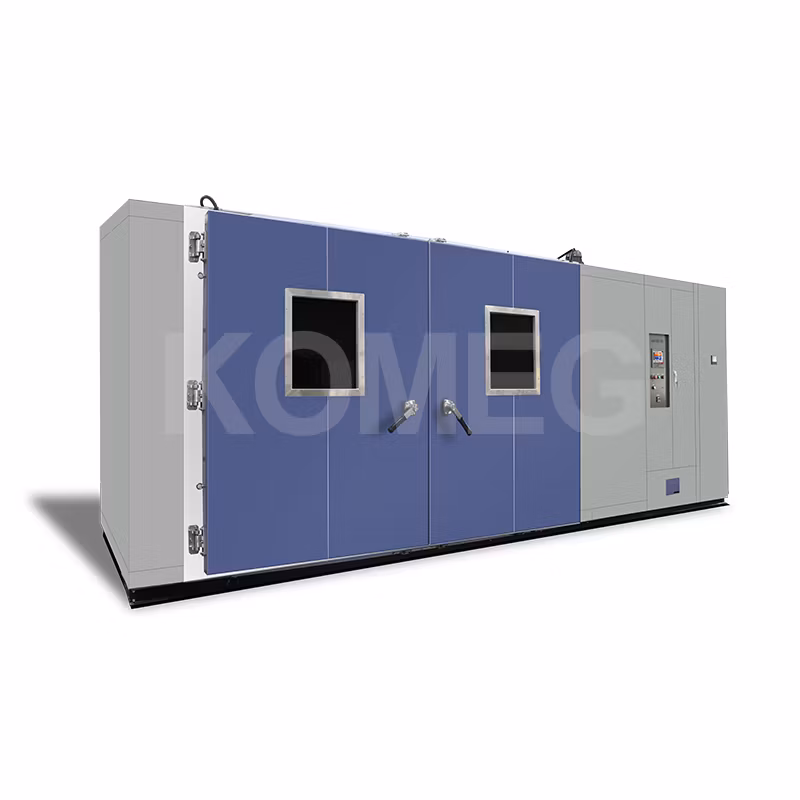

Drug Stability Test Chamber and Pharmaceutical Stability Test Chamber
Drug stability test is an essential part of the drug production stage, and a pharmaceutical stability chamber is key to completing this test.
Drug Stability Testing
Drug stability refers to the ability of a drug to retain its efficacy under various environmental conditions.
Drug stability testing involves subjecting drugs to different temperatures, humidity levels, and light conditions to observe any changes that may occur. This testing is conducted to determine the conditions under which drugs remain stable and to provide guidelines for drug development, production, packaging, storage, and transportation.
Drug stability testing is an integral part of the entire drug manufacturing process and ensures the safety and effectiveness of drugs.
Drug stability testing mainly includes factor testing(specific tests), accelerated testing, and long-term testing.
2. Other standard comply:
GB/T 2423.1-2008 (IEC68-2-1) Test A: Low temperature test method.
GB/T 2423.2-2008 (IEC68-2-2) Test B: High temperature test method.
GJB360.8-2009 (MIL-STD.202F) high temperature life test.
GJBl50.3-2009 (MIL-STD-810D) high temperature test method.
GJBl50.4-2009 (MIL-STD-810D) low temperature test method.
GB/T 2423.3-2008 (IEC68-2-3) Test Ca: Damp Heat Test Method.
GB/T 2423.4-2008 (IEC68-2-30) Test Db: Alternating damp heat.
GJBl50.9-2009 (MIL-STD-810D) Damp heat test method.
*Reminder: If there is a need for low wind speed (≤0.5m/s, this function is not available as standard), please follow the additional agreement!
Normal test points
25 ± 2°C / 60 ± 5% RH; 30 ± 2°C / 65 ± 5% RH; 30 ± 2°C / 75 ± 5% RH; 40 ± 2°C / 75 ± 5% RH.
3. Environmental Walk-In Chamber Main Technical Parameters
| Model | KWH-27LF1W0 | |||||||
| Volume(m³) | 27CBM | |||||||
| Interior Dimensions | W3000 x H2600 x D3400mm | |||||||
| Exterior Dimensions | W3200 x H2900 x D4313mm | |||||||
| Safety Devices(standard) | No fuse breaker, overpressure, overheat and over current protection for compressor, over-temperature protection, overload protection for the blower, dry heat protection | |||||||
| Standard accessories | Sight window*1, cable port ( portΦ100mm ) *1, chamber lamp*1, status indicator | |||||||
| Control System | Balanced Temperature & Humidity Control System | |||||||
| Refrigeration system | Water Cooled | |||||||
| Semi-hermetic compressor, cascade refrigeration system, | ||||||||
| CFC free refrigerant ( R404A and R23 ) | ||||||||
| Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
| Operation model | Program or fixpoint running | |||||||
| Memory capacity | 100 programs,100steps, all repeat 999 cycles, part repeat 99 cycles | |||||||
| Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
| Input | Temp.: pt-100, Humidity: pt-100 or ~5V DCV | |||||||
| Comm.port | RS-232 or RS-485 ( Softawre is an option) | |||||||
| Temp. range | Maximum: 85 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC | |||||||
| Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
| Temp. constancy | ±0.5 ºC | |||||||
| Humidity constancy | ±2.5%R.H | |||||||
| Temp. uniformity | ±2.0 ºC | |||||||
| Humidity uniformity | ±5.0%R.H | |||||||
| Ambient Temp. | +5 ºC~+35 ºC | |||||||
| Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
| Heat uptime | +20 ºC~+80 ºC, Within 60 min | |||||||
| Pull downtime | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
| Insulation material | Rigid polyurethane foam | |||||||
| Door size (mm) | Single wing: W1500 x H2600; Double wing: W3000 x H2600; | |||||||
| Note: 1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||||||||
4. Pharmaceutical Stability Chamber
A pharmaceutical stability chamber can simulate the temperature, humidity, and light conditions required for drug stability testing and is suitable for pharmaceutical companies, drug R&D institutions, and quality control departments.
The demand for drug stability testing chambers can vary based on factors such as the drug's properties, packaging, method of use, target market, transportation methods, and research stage. So, how do you choose a pharmaceutical stability chamber?
1. Determine the properties and types of drugs.
2. Determine the purpose of the pharmaceutical stability chamber according to the purpose and stage of the test.
3. Determine the required test conditions: temperature range, humidity range, lighting function.
4. Confirm the required pharmaceutical stability chamber size based on the sample size and installation location.
5. Determine the required accessories.
6. In case of a limited budget, you can consider choosing based on the manufacturer's recommendations.
Generally speaking, if you are conducting small batches of pharmaceutical research in the short term, choosing a small-sized desktop or reach-in pharmaceutical stability chamber would be sufficient. However, in the long run, especially for pharmaceutical companies, the number and types of drugs being tested will increase with the development of the company. In such cases, choosing a walk-in pharmaceutical stability chamber would better meet their testing needs. A majority of our customers also purchase walk-in drug stability testing chambers.
