Basic Info.
Manufacturing Process
CNC Milling
Surface Treatment
Spray-Paint
Operation Pressure
Atmospheric Pressure
Material
Steel
Product Name
Mud Pump Air Chamber Assembly
Color
Customer′s Requirements
Certificate
API 7K and ISO9001
Application
Mud Pump
MOQ
3 PC
Transport Package
Wooden Box
Trademark
Customization
Origin
China
HS Code
8431431000
Production Capacity
8000pieces/Year
Product Description

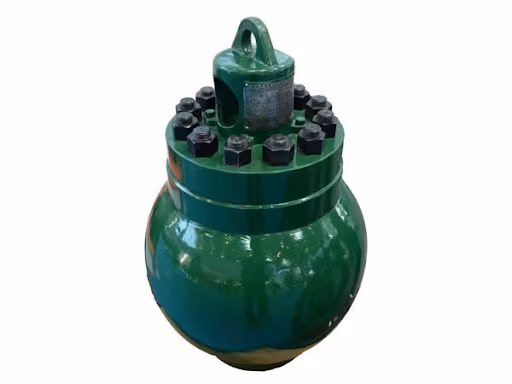

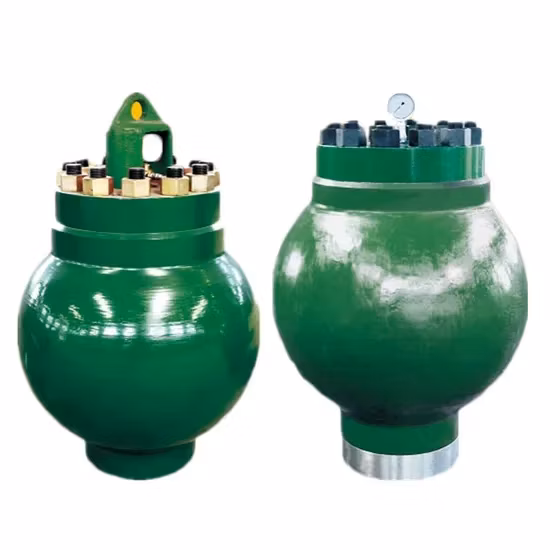

Pulsation Dampener Assembly Air Chamber for Mud Pump
The air chamber assembly plays an important role in regulating pressure and reducing fluctuation during drilling, it is very important to maintain the normal operation of air bag in drilling production.
The air chamber is installed at one end of the hydraulic discharge pipe. The function of the air chamber is to stabilize the pressure and compensate the pressure. The working pressure is 80% of the mud pump.
When disassembling and assembling the air chamber assembly, the pressure must be released first.
The F500 / F800 mud pump is equipped with KB45 air chamber, F1000/1300/1600 mud pump is equipped with KB75 air chamber.
The air chamber is installed at one end of the hydraulic discharge pipe. The function of the air chamber is to stabilize the pressure and compensate the pressure. The working pressure is 80% of the mud pump.
When disassembling and assembling the air chamber assembly, the pressure must be released first.
The F500 / F800 mud pump is equipped with KB45 air chamber, F1000/1300/1600 mud pump is equipped with KB75 air chamber.
Air Bag Maintenance
(1). The air bag inflator pressure is 30% of the design pump pressure, the general pressure is 4 ~ 6MPa, and the optimal pressure is 4.5MPa
(2). During normal operating hours of the mud pump, the airbag stop valve is closed to protect the instrument
In the first half of the discharge process, the air chamber stores part of the liquid from the excess average displacement of the cylinder; In the second half, the air chamber discharges some of the originally stored liquid to supplement the insufficient liquid in the cylinder, so as to keep the liquid pressure and displacement in the air bag after discharge line more uniform
| Brand | Model |
| BOMCO | F-500, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, D-375, D-700 |
| LANSHI | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
| QINGZHOU | SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600 |
| HONGHUA | 3NB-1600F, HHF800/1000F, HHF1300/1600, HHF1600HL, HHF2200HL |
| DRILLMEC | 7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600 |
| EMSCO | F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| GARNDER DENVER | PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
| NATIONAL | 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700A, K-500, K-500A |
| OILWELL | A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT |
| ELLIS WILLIAMS | W-440-LP, E-447, E-2200, W446, W440 |
| RUSSIAN | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
| Wirth | TPK1000, TPK1600, TPK2000/2200 |
| Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16 |
Best-all Petro. is located is the largest petroleum equipment manufacturing center in China. Best-all Petro is a professional manufacturer of mud pump spare parts. Our main products are: bi-metal cylinder liner, ceramic cylinder liner, hydraulic cylinder, piston, valve assembly and other mud pump spare parts.Our products are not only widely used in the domestic market such as Shengli Oilfield, but also exported to Central Asia, the Middle East, Southeast Asia, North America, South America and other countries in the world.
1.How do you transport the goods?
We transport the goods by container. we possesses long term cooperation with ship agency which can provide you lowest shipping fee. For samples we can send by express.
2.Can you satisfy my special requirement?
Definitely! we have strong design capacity and R&D capacity!
3.Which shipment terms can you accept?
EXW FOB CNF CIF DDU DDP
