Basic Info.
Model NO.
SH Series
Certification
CE, TUV, ISO
Warranty
1 Year
Saline Test
Nss Acss
Corrosion Test
Cass
Saline Concentration
5% Concentration of Nacl
Compressed Air Pressure
1.0~6.0 (Kgf)
Spray Volume
1.0~2.0ml /80cm2 /H
Meet Standard
ASTM B117
Control Methos
Programmable
Transport Package
Wooden Case
Specification
SH Series
Trademark
ASLi
Origin
Guangdong, China
HS Code
8514109000
Production Capacity
300 Sets/Month
Product Description
Programmable Touch Screen Control Industrial Salt Spray Fog Test Chamber for Testing Coating LED is specially designed for the testing of the corrosion erosion Resistance of the products after their material surfaces have been treated with electric plating, anodizing, Spray coating, anti-rusting oil and other anti-erosion treatment.
Salt Spray Fog Testing Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ± 0.1º C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
| Industrial Coating LED Touch Screen Salt Spray Fog Testing Chamber Technical Parameters | |||||||||
| Model | SH-60 | SH-90 | SH-120 | SH-160 | SH-200 | ||||
| Internal Dimension W*H*D (mm) | 600*450*400 | 900*600*500 | 1200*800*500 | 1600*800*500 | 2000*1000*500 | ||||
| External Dimension W*H*D (mm) | 1100*600*1200 | 1400*950*1200 | 1900*1300*1400 | 2300*1300*1400 | 2700*1500*1500 | ||||
| Lab Temperature | Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree C | ||||||||
| Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree C | ||||||||
| Lab Capacity(L) | 110 | 270 | 500 | 800 | 1500 | ||||
| Saline Capacity(L) | 15 | 25 | 40 | 40 | 40 | ||||
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||||||
| Compressed Air Pressure(Kgf) | 1.0~6.0 | ||||||||
| Spray Volume | 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) | ||||||||
| Spray Form | Continuous Spraying or Programmable Spraying | ||||||||
| Power | AC220V 1phase 3 lines15A | ||||||||
| Weight(Kg) | 65 | 80 | 120 | 160 | 200 | ||||

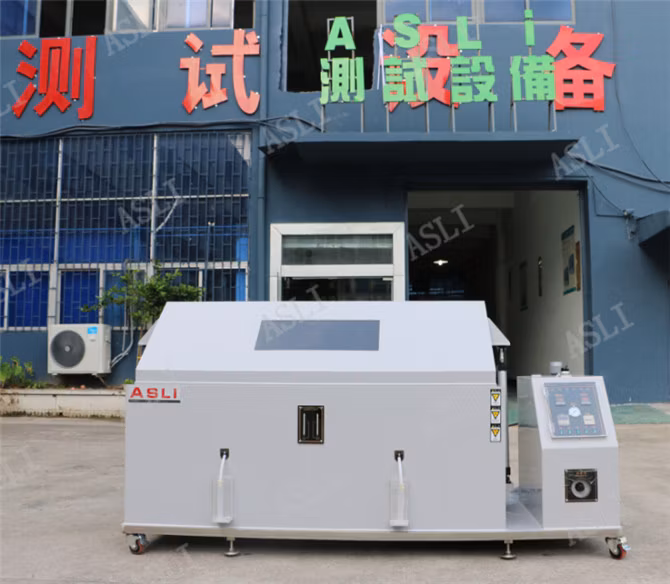

Salt Spray Testing Chamber pictures:
Customer Visiti ASLI Salt Spray Test Chamber
Certificate:
Exhibition:
Please feel free to contact me if any needs about Programmable Touch Screen Control Industrial Salt Spray Fog Test Chamber for Testing Coating LED
