Basic Info.
Model NO.
LFZ-SSC Series
Temperature Range
Rt+5°c ~ 55°c
Temperature Uniformity
2°c
Temperature Fluctuation
±0.5
Salt Spray Sedimentation Rate
1~2ml/80cm²•h
Transport Package
Carton/Plywood
Specification
1815× 810× 1495mm
Trademark
Xiangyi
Origin
China
HS Code
8479899990
Production Capacity
100 PCS/Month
Product Description
Scope:

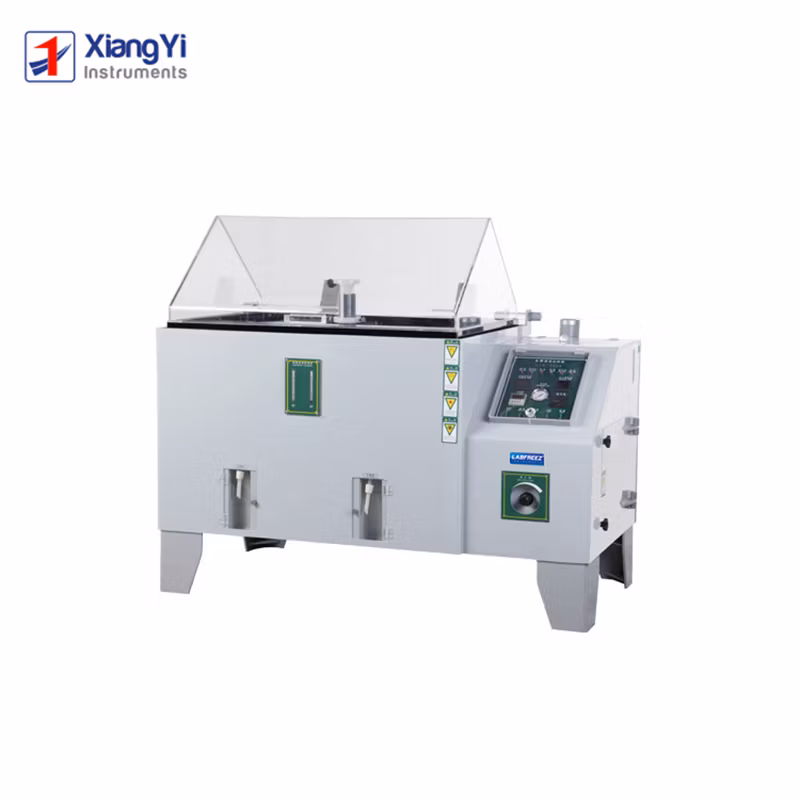

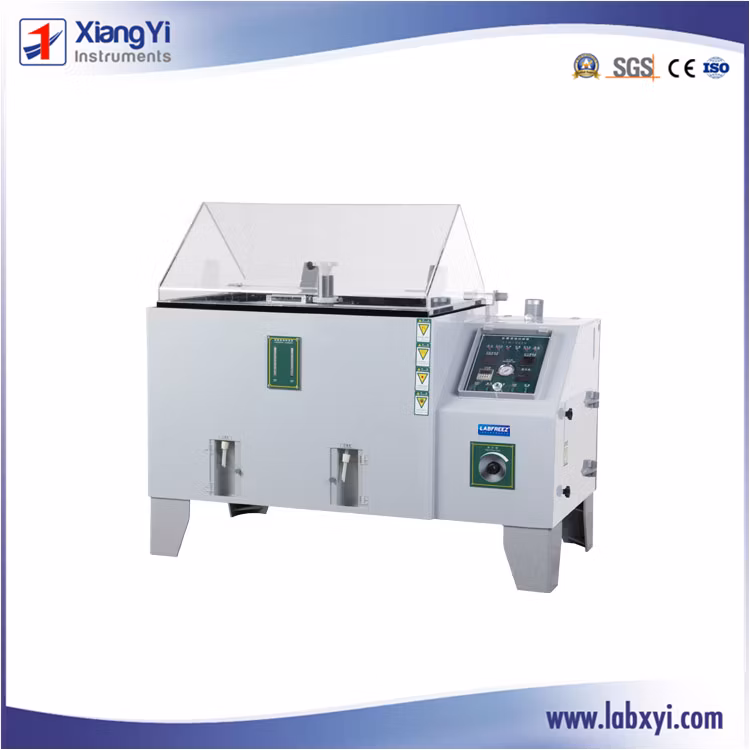

LFZ-SSC series salt spray corrosion test chamber is suitable for testing of spare parts, electronic components, protective layer of metallic material and industry products.
Features:
Material
Control system
Specifications:
LFZ-SSC series salt spray corrosion test chamber is suitable for testing of spare parts, electronic components, protective layer of metallic material and industry products.
Features:
Material
- Test chamber made by PVC board,durable temperature up to 60°C;
- Closures made by PVC Impact-resistant board;
- Hidden supplementary reagent bottle with water level display,easy to clean and unbreakable;
- Saturated air barrel made by SUS#304 material, high pressure-resistant, quality insulation ;
- Plane indexing rack, angle adjustable.
- Salt spray testing:test chamber 35°C±1°C, saturated air barrel 47°C±1°C
- Corrosion test: test chamber 50°C±1°C, saturated air barrel 63°C±1°C
- Rough adjustment: 2-2.5kg/cm² with oil water filtrate function
- Precision adjustment: 1kg/cm² 1/4PT pressure
- Take suck salt then flog,uniform atomization, none blocking crystallization,ensure continuous testing.
- Adopted special glass nozzle, spray volume & angle can be adjustable
- Adjustable spray volume: 1 - 2 ml 80cm²/hr(16 hours average amount)
Control system
- Test chamber temperature range 0 - 99.9°C, LCD display with P.I.D, control error ± 0.3°C
- Saturated air barrel temperature range 0 - 99.9°C, LCD display with P.I.D, control error ± 0.3°C
- Heating tank liquid expansion safety temperature range 0-120°C
- Saturated air barrel liquid expansion safety temperature control 0-120°C
- Digital timer from 0.1s-9990hr
- Push Button Switch can be continuous puss 20,000 times
Specifications:
- Temperature range: RT+5°C ~ 55°C
- Temperature uniformity: 2°C
- Temperature fluctuation: ±0.5
- Salt spray sedimentation rate:1~2ml/80cm²•h
| Model | Working size(L×W×H) mm | Product size(L×W×H) mm | Packing size(L×W×H) mm | Working capacity (L) | Salt water tank (L) | Remark |
| LFZ-SSC150 | 600×500×500 | 1075×630×1185 | 1085×640×1195 | 150 | 15 | Manual opening cover |
| LFZ-SSC240 | 800×600×500 | 1357×730×1285 | 1385×740×1285 | 240 | 20 | |
| LFZ-SSC350 | 900×650×600 | 1400×800×1385 | 1410×810×1395 | 350 | 25 | |
| LFZ-SSC500 | 1200×700×600 | 1500×900×1485 | 1510×1060×1495 | 500 | 32 | Pneumatic cover opening |
| LFZ-SSC750 | 1500×850×600 | 1805×1050×1485 | 1815×810×1495 | 765 | 40 |
