Basic Info.
Model NO.
B-SST-120
Certification
CE, TUV, ISO
Warranty
1 Year
Circular-Arc Pendulum Tube Radius
400mm
Length of Right Angle Swing Pipe
500mm
Hydraulic Pressure
50-400kpa
Transport Package
Strong Wooden Case
Specification
178*120*149 CM
Trademark
BOTO
Origin
China
HS Code
85141090
Production Capacity
5000sets/Month
Product Description

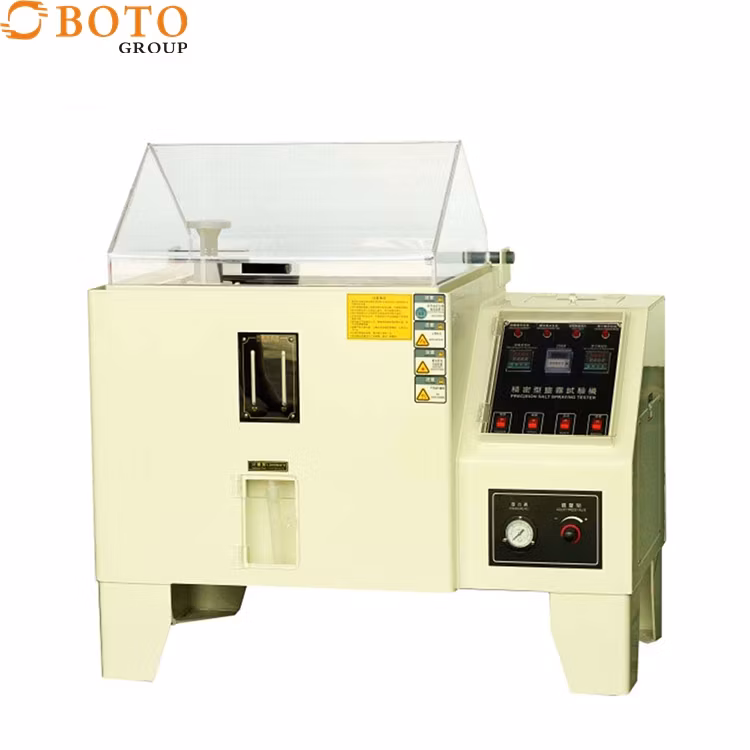

Programmable Salt Fog Spray Tester Cyclic Corrosion Test Apparatus Chamber Salt Fog Test Chamber
Introduction:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Salt Spray Tester is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Specifications:
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Packaging Dimensions: (WxDxH) 1610*1050*1400mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 150kg
HS Code: 8479899990
Production process
Certifications
Introduction:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Salt Spray Tester is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Specifications:
| Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C | ||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Packaging Dimensions: (WxDxH) 1610*1050*1400mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 150kg
HS Code: 8479899990
Production process
Certifications
PACKAGE&DELIVERY:
1. Standard exported package: Internal anticollision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4. 15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
