Basic Info.
Model NO.
KOMEG-B
Warranty
1 Year
Interior Dimensions (D*W*H)Mm
1500W*1280h*550d(Mm)
Dimensions(D*W*H)Mm
1720W*1980h*750d(Mm)
Heater Power
5kw
Max. Temp
200oc or 300oc
Rack Rotation Speed
5-10r.p.m
Temp. Range
Room Temp. +20~+100oc
Adaia Memsion
100W*100hj*50d(Mm)
Voltage Range
3~50V
Current Range
+/-5.0%
The Detection Speed
7-12sec/Cycle
Transport Package
Strong Plywood Case, Meet International Standards
Specification
Standard and Customized
Trademark
KOMEG
Origin
Dongguan, China
HS Code
90321000
Production Capacity
1000 Sets Per Yesr
Product Description

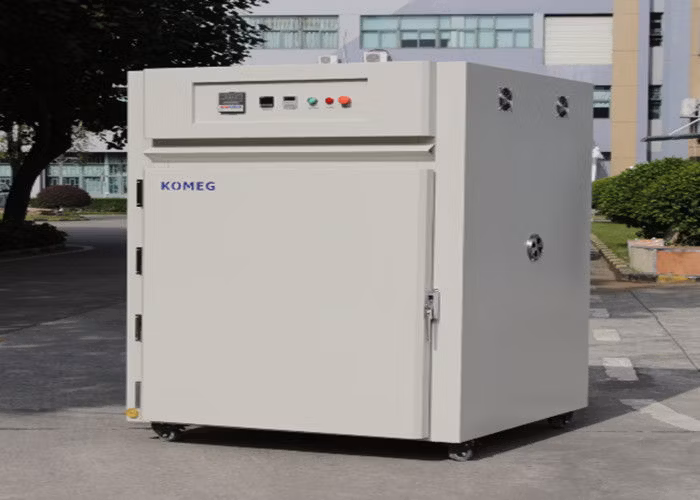

Temp and Humidity Climatic Test Chamber SUS304 Stainless Steel
Specifications for Climatic Test Chambers:
| Model | KMH-408R | KMH-408L | KMH-408S |
| 408L chamber volume | |||
| Temp. range | -20°C ~150°C | -40°C ~150°C | -70°C ~150°C |
| Display resolution | 0.1°C | ||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||
| Temperature uniformity | ±2.0°C | ||
| Heat up time | -20°C ~+100°C, within 35 min | ' -40°C ~+100°C, within 45 min | ' -70°C ~+100°C, within 60 min |
| Pull down time | -20°C ~-20°C, within 45 min | ' +20°C ~-40°C, within 60 min | ' +20°C ~-70°C, within 80 min |
| Humidity range | 20~98%R.H,(standard), '10~98%R.H,(with humidifier) | ||
| Humidity constancy | ±2.5%R.H | ||
| Humidity uniformity | ±3.0%R.H | ||
| Interior Dimension(mm) | 700W*750H*800D | ||
| Exterior Dimension(mm) | 980W*1940H*1740D | ||
