Product Description

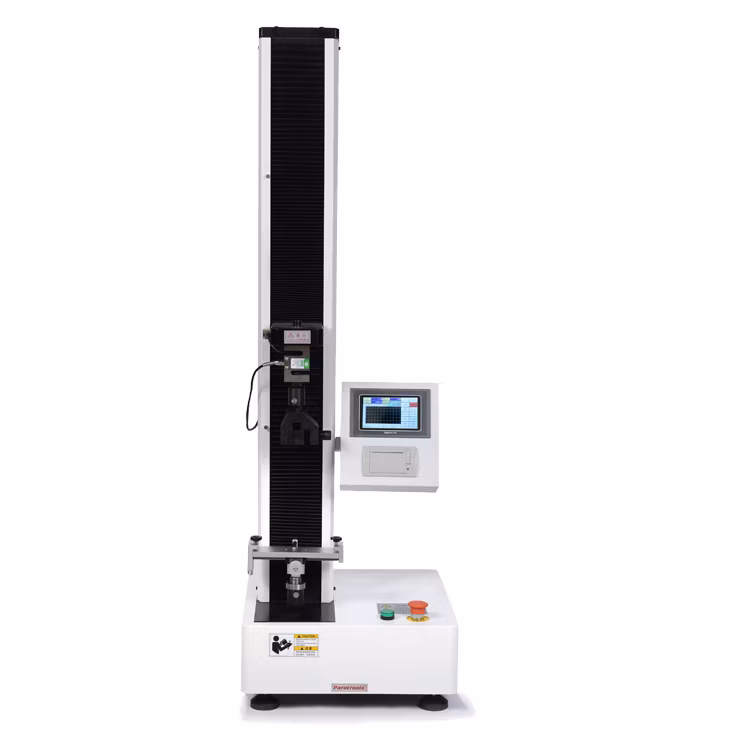

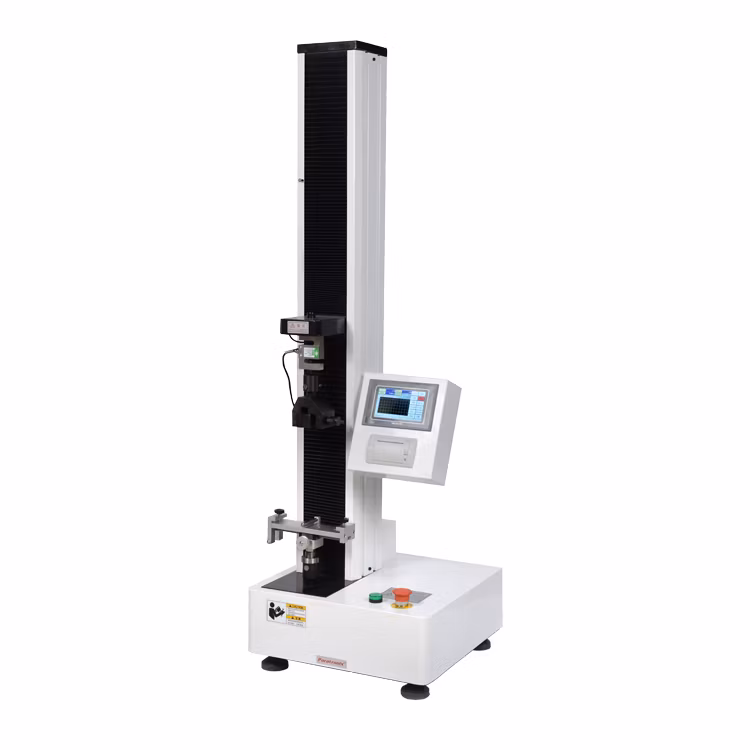

ETT series multipurpose Tester is the basic instrument for testing the physical properties of materials such as tension and pressure (tensile). The vertical and multi-column structure is adopted, and the chuck spacing can be arbitrarily set within a certain range. The stretching stroke is large, the running stability is good, and the test accuracy is high. The tensile testing machine is widely used in fiber, plastic, paper, cardboard, film and other non-metallic materials top pressing, soft plastic packaging heat sealing strength, tearing, stretching, various puncture, compression, ampoule breaking force, 180 degrees peel, 90 degrees peel, shear force and other test projects. At the same time, the instrument can measure the paper tensile strength, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index and other items. This product is suitable for medical, food, pharmaceutical, packaging, paper and other industries.
Parameters
| Measuring range | 5KG, 20KG, 50KG(other ranges optional) |
| Force value resolution | 1/10000 |
| Minimum resolution | 0.001N |
| precision | Class 0.3 |
| Loading speed | 5.5~600mm/min(adjustable) |
| Velocity accuracy | 1 ~ 10 mm/min ±1%,10 ~ 600 mm/min ±0.5% |
| Sample width | ≤20mm(can be customized test fixture according to customer materials) |
| Journey | 1000mm (other stroke optional) |
| Displacement resolution | 0.001mm |
| Microcomputer control | 3.5in lattice LCD display, curve waveform diagram display |
| Computer control | Computer display test curve detection chart (standard without software) |
| Man-machine interface | window platform report editing, curve analysis diagram A4 printout (connect computer and printer) |
| Printout | Built-in modular integrated thermal printer |
| Screw | Custom Ball Screw (Taiwan) |
| Working environment | Temperature (20±10)°C, humidity < 85% |
| Overall dimension | 460mm(L)×400 mm (W) ×1460mm (H) |
| Net weight | 70 kg |
Product features
The design method of the imported instrument clamp is adopted to avoid the detection error caused by the operator because of the operation technical problems
Imported customized high sensitivity load element, imported lead screw to ensure accurate displacement
Can be arbitrarily selected in the speed range of 5-600mm/min, this function can meet the 180° peel, ampoule breaking force, film tension and other samples detection
With tensile force, plastic bottle top pressure test, plastic film, paper elongation, breaking force, paper breaking length, tensile energy absorption, tensile index, tensile energy absorption index and other functions
The motor warranty is 3 years, the sensor warranty is 5 years, and the whole machine warranty is 1 year, which is the longest warranty period in China
Ultra-long travel and large load (500kg) structural design and flexible sensor selection facilitate the expansion of multiple test projects
Standards
ISO37, GB8808, GB/T1040.1-2006, GB/T1040.2-2006, GB/T1040.3-2006, GB/T1040.4-2006, GB/T1040.5-2008, GB/T4850- 2002, GB/T12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T7122, GB/T2790, GB/T2791, GB/T2792, GB/T 17590, GB15811, ASTME4, ASTMD882, ASTMD1938, ASTMD3330, ASTMF88, ASTMF904, JISP8113, QB/T2358, QB/T1130, YBB332002-2015, YBB00172002-2015, YBB00152002-2015
FAQ
Are you a manufacturer or trading company?
Do you have any certificate?
We have passed ISO 9001, IPMS management system certificates, and have 22 utility model patents and 17 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
