Basic Info.
Model NO.
KTS3-500B
Certification
CE, ISO
Warranty
1 Year
Temperature Range
-55ºC~+150ºC
Inner Dimensions W×h×d
1000×750×700
External Dimensions W×h×d
1900×1962×2200
Heating Time
Within 30min
Cooling Time
Within 70min
Transport Package
Strong Plywood Case, Meet International Standards
Specification
Standard and customs made
Trademark
KOMEG
Origin
Dongguan, China
HS Code
90321000
Production Capacity
1000 Sets Per Year
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 300.00cm
Package Gross Weight
1000.000kg
Product Description

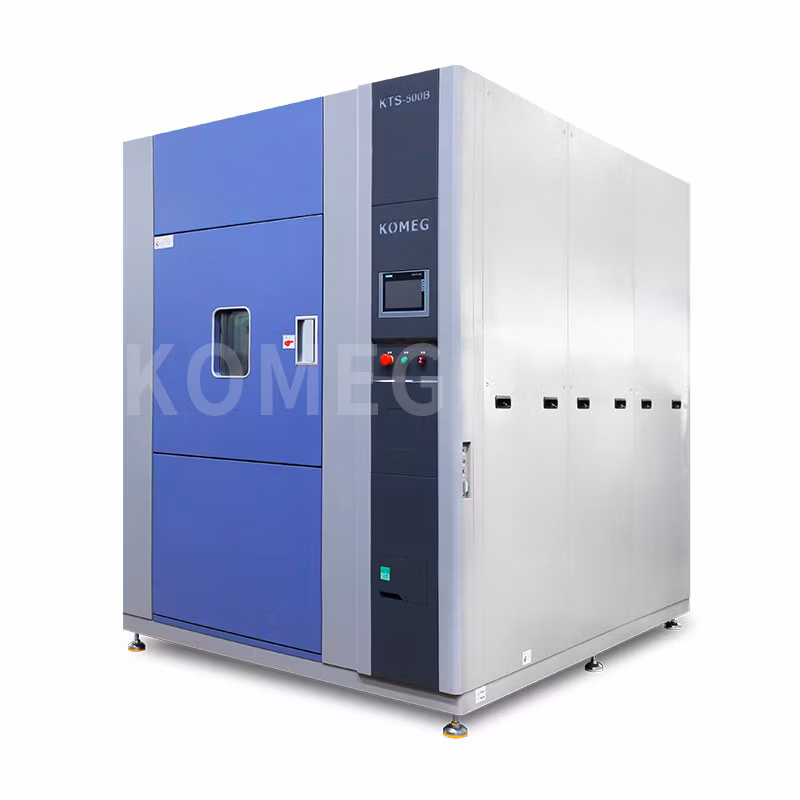

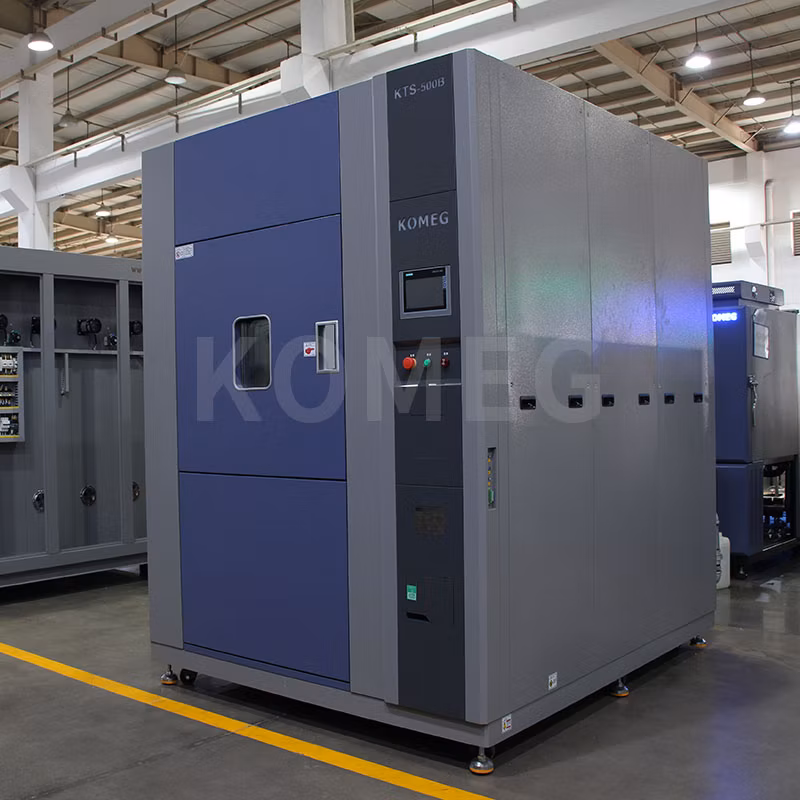

Three Zones Climatic Simulation Testing Chamber for Thermal Shock Test
Three zones thermal shock chamber has a hot zone, a cold zone and a test zone. The test zone is used to place samples. The samples stay in the test zone and doesn't move up-down. By switching the damper between the test zone and cold/hot zone to achieve temperature shock test.
High temperature → normal temperature → low temperature
Low temperature → normal temperature → high temperature
| Model Number | KTS3-500A | KTS3-500B | KTS3-500D | |
| Volume | 500L | |||
| Inner Dimensions W×H×D(mm) | 1000×750×700 | |||
| External Dimensions W×H×D(mm) | 1900×1962×2200 | |||
| Temperature Fluctuation | ≤1ºC | |||
| Temperature Range | Low Temperature Chamber | -40ºCto-10ºC | -55ºCto-10ºC | -65ºCto-10ºC |
| High Temperature Chamber | +60ºCto+150ºC | +60ºCto+150ºC | +60ºCto+150ºC | |
| Max. power | 45KW | 50KW | 70KW | |
| Max. Current | 78A | 89A | 125A | |
| Power | 380V AC | |||
| Damper Switch Time | ≤5sec | |||
| Noise | ≤75dB | |||
| Temperature Shock Performance | High temperature exposure +150ºC:≥30min Transition time: ≤5min Low temperature exposure -40ºC/ -55ºC/ -65ºC:≥30min | |||
| Heating Time | RT~200ºC:about 30min | |||
| Cooling Time | A: RT~-60ºC:about 60min B: RT~-70ºC:about 70min D: RT~-75ºC:about 70min | |||
KOMEG's products:
√ Guaranteed quality
√ Low failure rate
√ Long service life
KOMEG's service:
√ Pre-sales: customer consultation and product solution confirmation
√ During sale: maintain communication with customers and follow up on product progress
√ After-sales: Operation guidance and troubleshooting
