Product Description

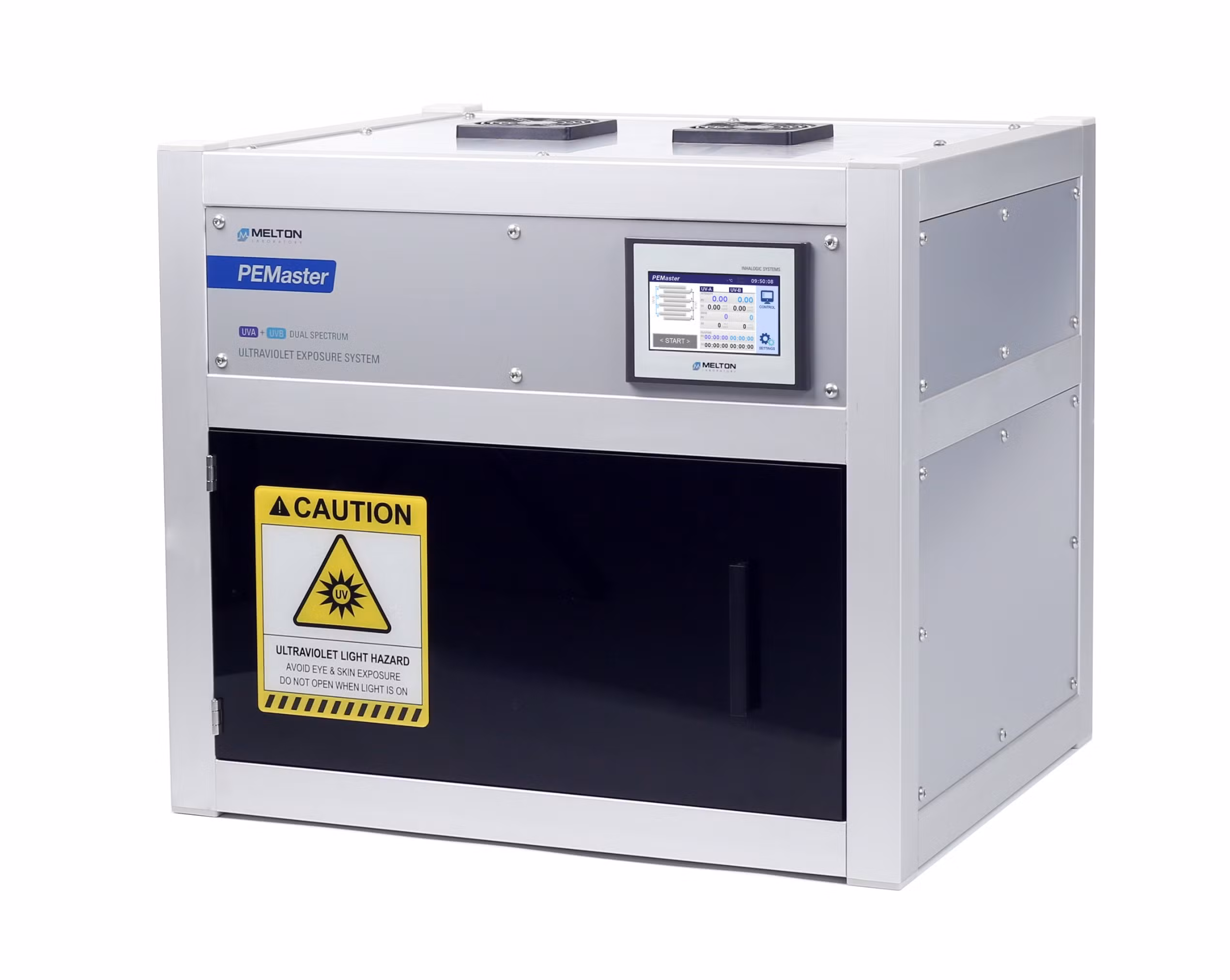

EXCLUSIVE DISTRIBUTORS ARE WANTED GLOBALLY! PLEASE CONTACT US FOR DETAILS. The PEMaster irradiation chamber is a compact and advanced UV light exposure system designed specifically for biological experiments. This tabletop unit is equipped with four independently controlled UVA/UVB light sources, allowing precise real-time monitoring and control of irradiation intensity and dosage. It is ideal for various phototoxicity and efficacy testing studies, ensuring accurate and consistent results across multiple biological samples. Lamps are interchangable. No tool is needed for lamp replacement.
Technical Data
| Dimensions | 55 x 40 x 60 cm |
| Interior Chamber | 40 x 25 x 50 cm |
| Power consumption | 120 W |
| Irradiance UVA | 0-3.0 mW/cm2 |
| Irradiance UVB | 0-3.0 mW/cm2 |
| Operating temperature | 0-40 ºC |
| Sample temperature | ambient +5ºC |
| Lamp Lifetime | up to 2000 h |
| Sensors | 2, fully digital |
| PC interface | touchscreen |
| UVA Measuring range | 0-2000 mW/cm2 |
| UVB Measring range | 0- 200 mW/cm2 |
| UVA Dose resolution | 0.1 mJ/cm2 |
| UVB Dose resolution | 0.1 uJ/cm2 |
| Spectral ranges | UVA, UVB, UVC, or LUX |
Applications:
The PEMaster system is versatile and can be used for a variety of biological tests, including but not limited to:
| Application | Test/Guideline |
| 3T3 NRU Phototoxicity Test | OECD TG432 |
| ROS Reactivity Photoreactivity Test | OECD TG495 |
| Reconstructed Epidermal Cell Model Phototoxicity Test | OECD TG498 |
| Keratinocyte and Epidermal Sunscreen Efficacy Test | - |
| Fibroblast and Full Skin Model Photoaging Efficacy Test | - |
| Photodamage Repair Efficacy Test | - |
| Custom Phototoxicity Models and Mechanism Research | - |
| Irradiation of bacteria and cell cultures | |
| Photostability testing | |
| UV and daylight material testing | |
| Post-treatment for rapid prototyping | |
| UV curing, sealing and bonding |
