Product Description

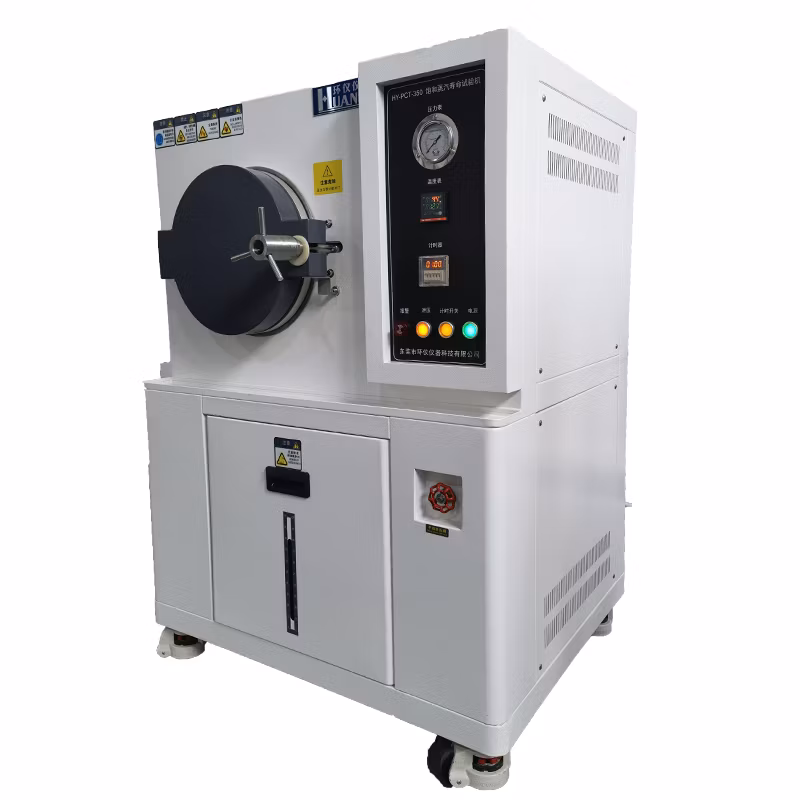

PCT aging test chamber
Saturated Unsaturated Humidity Pressure Aging Test Chamber is suitable for the sealing performance of defense, aerospace, automotive parts, electronic parts, plastics, magnet industries, pharmaceuticals, circuit boards, multilayer circuit boards, IC, LCD, magnets, lighting, lighting products and other products Testing, related products for accelerated life test, used in the product design stage, used to quickly expose product defects and weaknesses. Test the wear resistance and air tightness of its products.PCT aging chamber is used to test capability of semiconductors. The product to be tested is placed in a specific temperature, humidity and pressure environment to test the pressure resistance and air tightness of the sample. It increases environmental stress (temperature, humidity and pressure) and working stress (product voltage, load, etc.) to speed up the test process and shorten the life test time of the product or system.
GB/T2423.40-2013
IEC60068-2-66:1994
1. HY-PCT-600 PCT test chamber adopts SSR non-contact heating control.
2. water level protection, by detecting the water level in the oven.
3. safety protection pressure relief button, emergency safety device two-stage automatic pressure relief button.
| Item/Model | HY-PCT-250 | HY-PCT-350 | HY-PCT-450 | HY-PCT-650 |
| Inner Size(mm)(W x H x D) | 250*300 | 350*400 | 450*500 | 650*600 |
| Outer Size(mm)(W x H x D) | 500*450*650 | 600*550*750 | 700*650*850 | 700*650*850 |
| Material(Inner) | Stainless steel #304 | |||
| Material(Outer) | Powder | |||
| Temperature Range | +100ºC-132ºC(Optional: up to 145ºC) | |||
| Structure | Standardized pressure vessels | |||
| Humidification System | Electric heating tube | |||
| Humidification Water Supply | Manual filling(automatic filling) | |||
| Pressure Range | 0-2kg/mm²(Optional: up to 3kg/mm²) | |||
| Power Supply | 220V-240V 50/60HZ Single Phase | |||
| Operating Temperature | 121ºC/132ºC | |||
| Temperature Uniformity | ±1.5ºC | |||
| Operating Maximum Pressure | 2.0Kg/mm², Can withstand high oxygen pressure of more than 6ATM | |||
| Temperature Controller | Adopt PID microcomputer temperature controller | |||
1.Q :How to provide after-sales service?
A:If customers need our engineers to come to the site for service, we will send out engineers to provide repair service for you.
2.Q: Can we visit and study in your factory?
A: Welcome to visit and study in our factory, we will show you our R&D and production capacity.
3.Q :Can I install and commission the calibration equipment on site?
A: Yes, we can send technicians and engineers to the customer's site for installation, commissioning and calibration.
4.Q: What are the transportation methods?
A :Air freight, sea freight, railroad transportation, all transportation methods according to the customer's needs.
5.Q : What are the packing methods?
A: Standard export wooden box packaging, solid and firm.
6.Q :How do you calibrate the equipment?
A: We have our own calibration and third-party calibration.
7.Q :What are the payment methods?
A :The payment methods are T/T, CIF, Paypal, L/C, VISA and so on.
8.Q :How long is the warranty period?
A :Warranty is 1 year, lifetime free service.
9.Q :What is the delivery time for your company's products?
A :This depends on the actual product you order, usually at least 30 days.
