Product Description

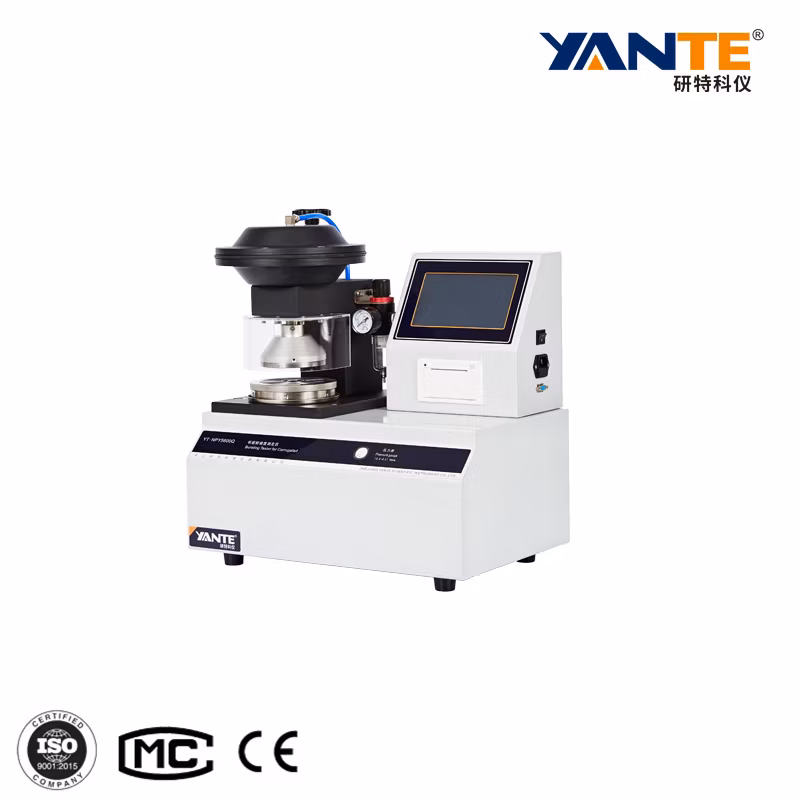

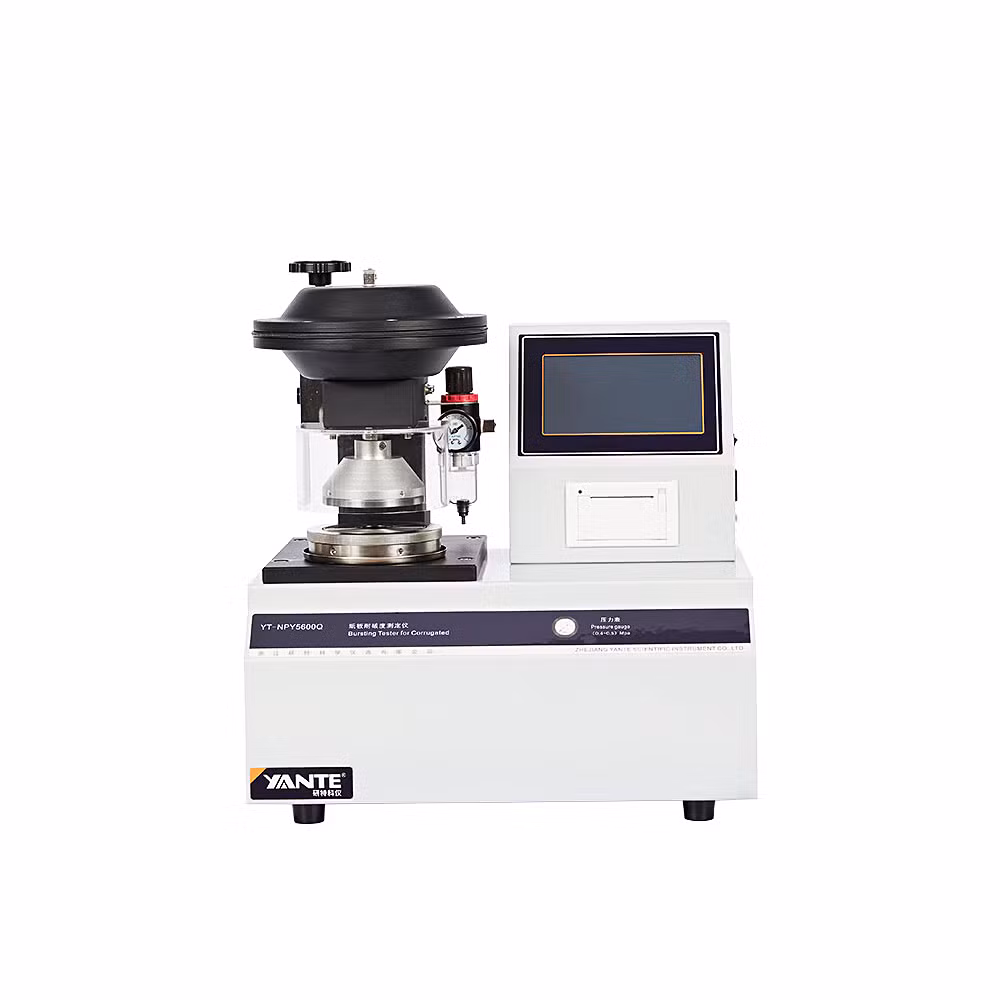

Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the breaking strength of cardboard; simple operation, reliable performance, and advanced technology; it is a scientific research unit, paper manufacturer, packaging industry, and quality inspection department Indispensable ideal equipment.
Product Features
The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range
Pneumatic clamping system, one key test
ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data
Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Over-range automatic reset
Three units can be selected kPa, kgf/cm2, Psi, can be switched at will
Communication with computer software (purchase separately)
Application Range
Corrugated cardboard, cartons, paper trays, aluminum foil, film, rubber, silk, cotton and other non-paper materials
Executive Standard
GB/T 1539,QB/T 2679.8,GB/T 6545,ISO 2759
Supporting Accessories And Consumable
| No. | Accessory name | Model | Picture | Standard | Optional |
| 1 | Diaphragm for Board |  | √ | ||
| 2 | Dimethicone | 201-50CS |  | √ |
Technical Parameters
| No. | Parameter item | Technical index |
| 1 | Power Supply | AC100V±10% or AC220V±10%,(50/60)Hz,150W |
| 2 | Working Environment | Temperature(10~35)ºC, Humidity≤ 85% |
| 3 | Measuring range | 250~5600kPa |
| 4 | Indication error | ±0.5%(Range 5%~100%) |
| 5 | Resolution | 1kPa |
| 6 | Refueling speed | 170±15ml/min |
| 7 | Air pressure adjustment | 0.4MPa |
| 8 | Hydraulic system tightness | Upper limit of measurement,1min Pressure drop<10%Pmax |
| 9 | Upper clamp ring aperture | 31.5±0.05 mm |
| 10 | Lower clamp ring aperture | 31.5±0.05 mm |
| 11 | Built-in thermal printer | |
| 12 | Communication Interface | RS232(Default) (USB, WIFI optional) |
| 13 | Dimension | 470×315×520 mm |
| 14 | Net Weight | 56kg around |
